MPX1D1770L100

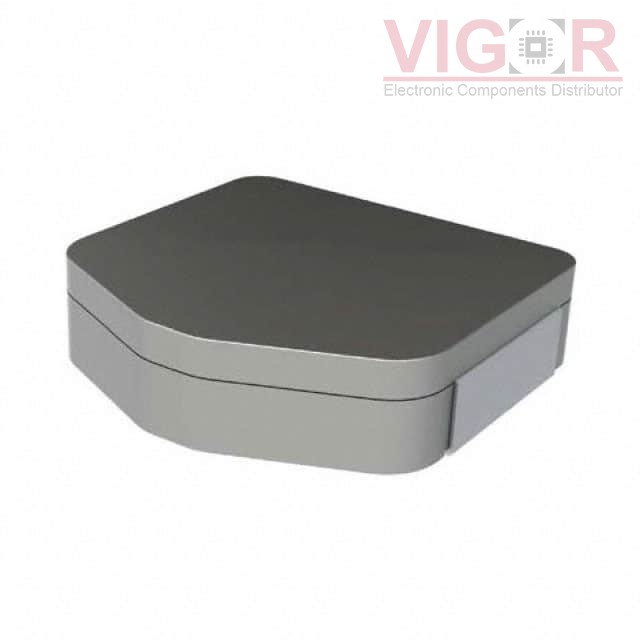

Image is for reference,
please contact us to get the real picture

Part No :: MPX1D1770L100

Manufacturer: KEMET

Description: FIXED IND 10UH 14.5A 12.2 MOHM

Catalog: Fixed Inductors

Shipped from: HK warehouse

Expected Shipping Date: Jul 15 - Jul 19 2025

DataSheet: MPX1D1770L100 PDF

Availability: 87 pieces

Unit Price: ~~$5.59000~~

Current price of MPX1D1770L100 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

MPX1D1770L100 Specifications

Type	Description
Series:	METCOM MPX
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Type:	Wirewound
Material - Core:	Metal Composite
Inductance:	10 µH
Tolerance:	±20%
Current Rating (Amps):	14.5 A
Current - Saturation (Isat):	16.5A
Shielding:	Shielded
DC Resistance (DCR):	12.2mOhm Max
Q @ Freq:	-
Frequency - Self Resonant:	7MHz
Ratings:	-
Operating Temperature:	-55°C ~ 155°C
Inductance Frequency - Test:	100 kHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	Nonstandard
Supplier Device Package:	-
Size / Dimension:	0.669" L x 0.673" W (17.00mm x 17.10mm)
Height - Seated (Max):	0.276" (7.00mm)
