MPXV1D0520L100

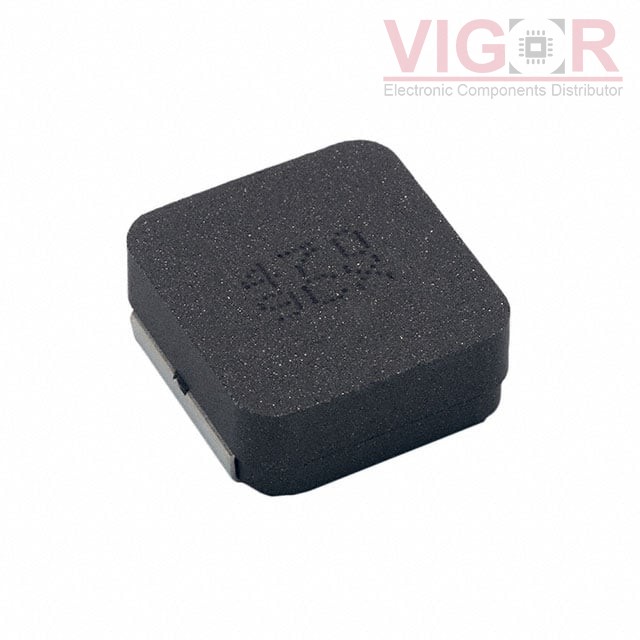

Image is for reference,
please contact us to get the real picture

Part No :: MPXV1D0520L100

Manufacturer: KEMET

Description: FIXED IND 10UH 2.2A 222.8 MOHM

Catalog: Fixed Inductors

Shipped from: HK warehouse

Expected Shipping Date: Jul 06 - Jul 10 2025

DataSheet: MPXV1D0520L100 PDF

Availability: 6965 pieces

Unit Price: ~~$1.99000~~

Current price of MPXV1D0520L100 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

MPXV1D0520L100 Specifications

Type	Description
Series:	MPXV
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Type:	-
Material - Core:	Metal Composite
Inductance:	10 µH
Tolerance:	±20%
Current Rating (Amps):	2.2 A
Current - Saturation (Isat):	3.5A
Shielding:	Shielded
DC Resistance (DCR):	222.8mOhm Max
Q @ Freq:	-
Frequency - Self Resonant:	20MHz
Ratings:	AEC-Q200
Operating Temperature:	-55°C ~ 155°C
Inductance Frequency - Test:	100 kHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	Nonstandard
Supplier Device Package:	-
Size / Dimension:	0.209" L x 0.197" W (5.30mm x 5.00mm)
Height - Seated (Max):	0.079" (2.00mm)
