Due to the large price fluctuation in 2021-2022, please send an inquiry to get the latest quotation, The current price of UP1B-1R5-R is for reference only, if you want to get the best price, please submit an inquiry or email directly to our sales team [email protected]
Type | Description |
---|---|
Series: | UNI-PAC™ |
Package: | Tape & Reel (TR) |
Part Status: | Active |
Type: | Wirewound |
Material - Core: | Ferrite |
Inductance: | 1.5 µH |
Tolerance: | ±20% |
Current Rating (Amps): | 4.2 A |
Current - Saturation (Isat): | 4.5A |
Shielding: | Unshielded |
DC Resistance (DCR): | 20mOhm Max |
Q @ Freq: | - |
Frequency - Self Resonant: | - |
Ratings: | - |
Operating Temperature: | -40°C ~ 85°C |
Inductance Frequency - Test: | 100 kHz |
Features: | - |
Mounting Type: | Surface Mount |
Package / Case: | Nonstandard |
Supplier Device Package: | - |
Size / Dimension: | 0.350" L x 0.240" W (8.89mm x 6.10mm) |
Height - Seated (Max): | 0.197" (5.00mm) |

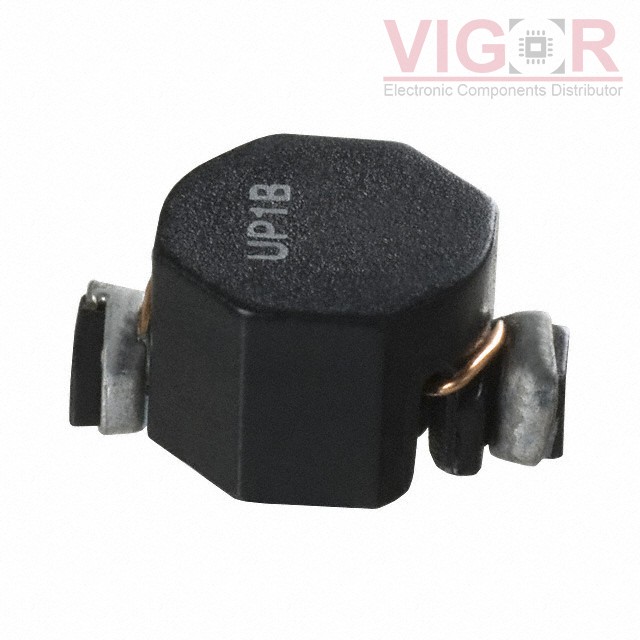

FIXED IND 1.5UH 4.2A 20 MOHM SMD
