Due to the large price fluctuation in 2021-2022, please send an inquiry to get the latest quotation, The current price of ISC1812ER120J is for reference only, if you want to get the best price, please submit an inquiry or email directly to our sales team [email protected]
Type | Description |
---|---|
Series: | ISC-1812 |
Package: | Tape & Reel (TR)Cut Tape (CT) |
Part Status: | Active |
Type: | Wirewound |
Material - Core: | Iron Powder |
Inductance: | 12 µH |
Tolerance: | ±5% |
Current Rating (Amps): | 265 mA |
Current - Saturation (Isat): | - |
Shielding: | Shielded |
DC Resistance (DCR): | 1Ohm Max |
Q @ Freq: | 50 @ 2.52MHz |
Frequency - Self Resonant: | 22MHz |
Ratings: | - |
Operating Temperature: | -55°C ~ 125°C |
Inductance Frequency - Test: | 2.52 MHz |
Features: | - |
Mounting Type: | Surface Mount |
Package / Case: | 1812 (4532 Metric) |
Supplier Device Package: | 1812 |
Size / Dimension: | 0.177" L x 0.126" W (4.50mm x 3.20mm) |
Height - Seated (Max): | 0.134" (3.40mm) |

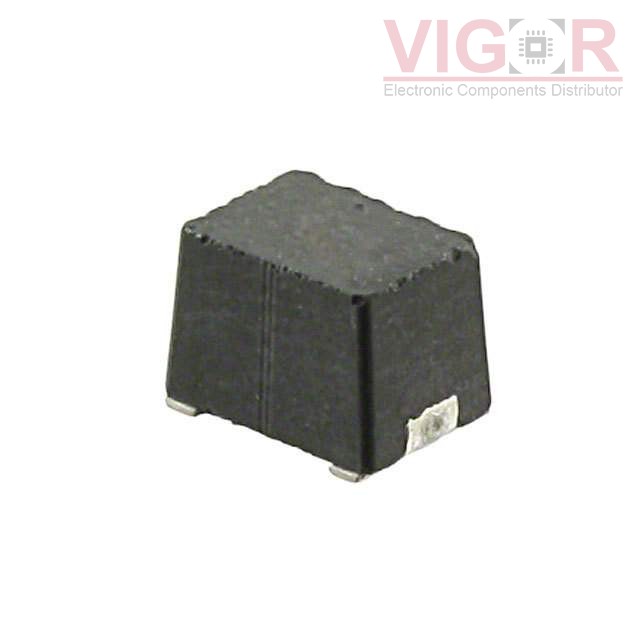

FIXED IND 12UH 265MA 1 OHM SMD
