NS10165T2R2NNA

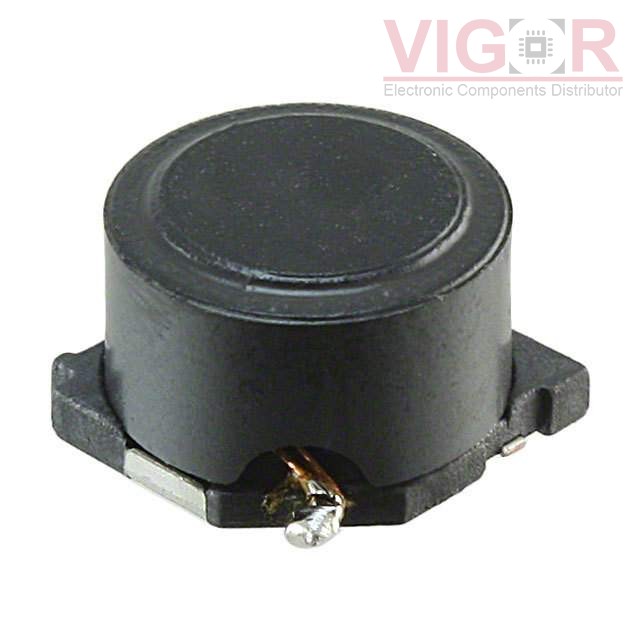

Image is for reference,
please contact us to get the real picture

Part No :: NS10165T2R2NNA

Manufacturer: TAIYO YUDEN

Description: FIXED IND 2.2UH 7.32A 8.4 MOHM

Catalog: Fixed Inductors

Shipped from: HK warehouse

Expected Shipping Date: Jul 13 - Jul 17 2025

DataSheet: NS10165T2R2NNA PDF

Availability: 363 pieces

Unit Price: ~~$0.91000~~

Current price of NS10165T2R2NNA is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

NS10165T2R2NNA Specifications

Type	Description
Series:	NS
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Type:	Wirewound
Material - Core:	Ferrite
Inductance:	2.2 µH
Tolerance:	±30%
Current Rating (Amps):	7.32 A
Current - Saturation (Isat):	10.8A
Shielding:	Shielded
DC Resistance (DCR):	8.4mOhm Max
Q @ Freq:	-
Frequency - Self Resonant:	63MHz
Ratings:	-
Operating Temperature:	-40°C ~ 125°C
Inductance Frequency - Test:	100 kHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	Nonstandard
Supplier Device Package:	-
Size / Dimension:	0.398" L x 0.398" W (10.10mm x 10.10mm)
Height - Seated (Max):	0.270" (6.85mm)
