SRP3020TA-R47M

Image is for reference,
please contact us to get the real picture

Part No :: SRP3020TA-R47M

Manufacturer: J.W. Miller / Bourns

Description: FIXED IND 470NH 7A 23 MOHM SMD

Catalog: Fixed Inductors

Shipped from: HK warehouse

Expected Shipping Date: Jul 02 - Jul 06 2025

DataSheet: SRP3020TA-R47M PDF

Availability: 0 pieces

Unit Price: ~~$1.23000~~

Current price of SRP3020TA-R47M is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

SRP3020TA-R47M Specifications

Type	Description
Series:	SRP3020TA
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Type:	Wirewound
Material - Core:	Carbonyl Powder
Inductance:	470 nH
Tolerance:	±20%
Current Rating (Amps):	7 A
Current - Saturation (Isat):	9A
Shielding:	Shielded
DC Resistance (DCR):	23mOhm Max
Q @ Freq:	5 @ 100kHz
Frequency - Self Resonant:	105MHz
Ratings:	AEC-Q200
Operating Temperature:	-40°C ~ 150°C
Inductance Frequency - Test:	100 kHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	2-SMD
Supplier Device Package:	2-SMD
Size / Dimension:	0.138" L x 0.126" W (3.50mm x 3.20mm)
Height - Seated (Max):	0.079" (2.00mm)

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

Hot Products

HOT

ER1641-392KS

FIXED IND 3.9UH 450MA 400 MOHM

HOT

CC453232-4R7KL

FIXED IND 4.7UH 650MA 270MOHM SM

HOT

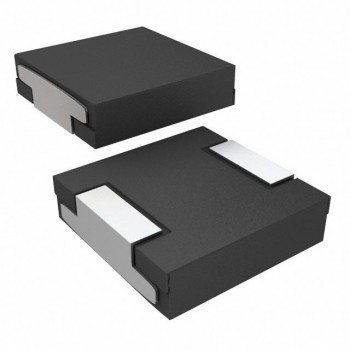

IHLP5050FDER1R5M01
