PM1608S-220M-RC

PM1608S-220M-RC

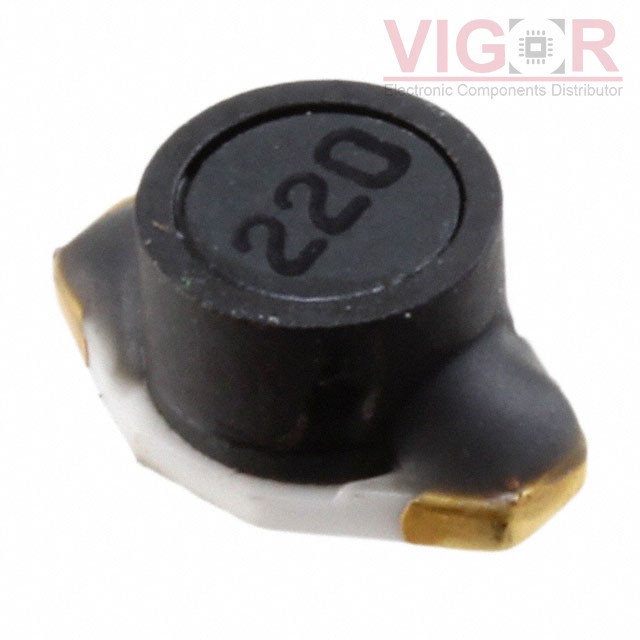

Image is for reference,
please contact us to get the real picture

Part No :

PM1608S-220M-RC

Manufacturer
J.W. Miller / Bourns
Description
FIXED IND 22UH 700MA 110MOHM SMD
Catalog
Fixed Inductors
Shipped from
HK warehouse
Expected Shipping Date
Jul 06 - Jul 10 2025
DataSheet
PM1608S-220M-RC PDF
Availability
559 pieces
Unit Price
$1.33000

Current price of PM1608S-220M-RC is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

PM1608S-220M-RC Specifications
Type Description
Series:PM1608S
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Type:Wirewound
Material - Core:Ferrite
Inductance:22 µH
Tolerance:±20%
Current Rating (Amps):700 mA
Current - Saturation (Isat):-
Shielding:Shielded
DC Resistance (DCR):110mOhm Max
Q @ Freq:40 @ 100kHz
Frequency - Self Resonant:25MHz
Ratings:-
Operating Temperature:-55°C ~ 125°C
Inductance Frequency - Test:100 kHz
Features:-
Mounting Type:Surface Mount
Package / Case:Nonstandard
Supplier Device Package:-
Size / Dimension:0.260" L x 0.173" W (6.60mm x 4.40mm)
Height - Seated (Max):0.118" (3.00mm)
