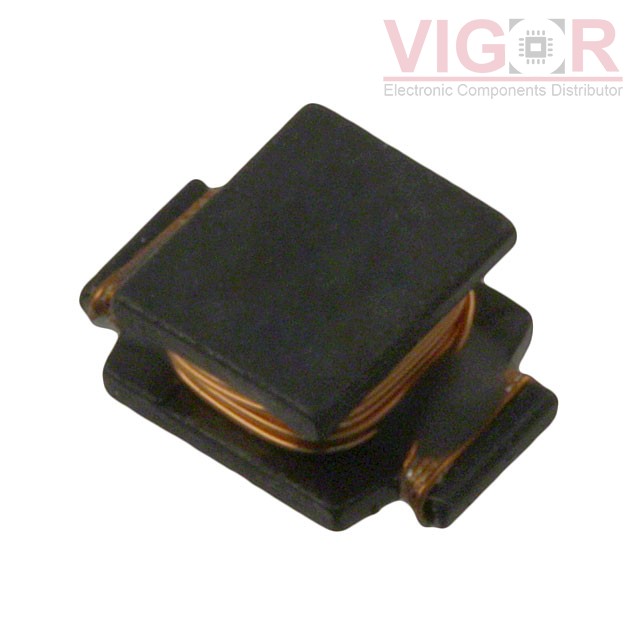

SDR0703-220KL

SDR0703-220KL

Image is for reference,
please contact us to get the real picture

Part No :

SDR0703-220KL

Manufacturer
J.W. Miller / Bourns
Description
FIXED IND 22UH 650MA 300MOHM SMD
Catalog
Fixed Inductors
Shipped from
HK warehouse
Expected Shipping Date
Aug 17 - Aug 21 2025
DataSheet
SDR0703-220KL PDF
Availability
710 pieces
Unit Price
$0.75000

Current price of SDR0703-220KL is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

SDR0703-220KL Specifications
Type Description
Series:SDR0703
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Type:Wirewound
Material - Core:Ferrite
Inductance:22 µH
Tolerance:±10%
Current Rating (Amps):650 mA
Current - Saturation (Isat):950mA
Shielding:Unshielded
DC Resistance (DCR):300mOhm Max
Q @ Freq:20 @ 2.52MHz
Frequency - Self Resonant:26MHz
Ratings:-
Operating Temperature:-40°C ~ 125°C
Inductance Frequency - Test:100 kHz
Features:-
Mounting Type:Surface Mount
Package / Case:Nonstandard
Supplier Device Package:-
Size / Dimension:0.256" L x 0.177" W (6.50mm x 4.50mm)
Height - Seated (Max):0.106" (2.70mm)
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products
HOT 7443340330

7443340330

FIXED IND 3.3UH 14A 8.2 MOHM SMD

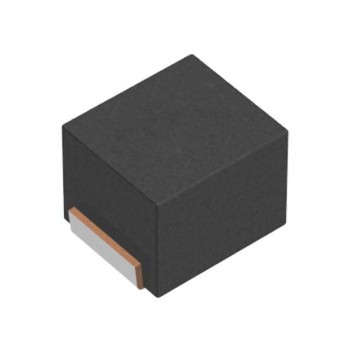

HOT NLCV25T-R22M-EFRD

NLCV25T-R22M-EFRD

FIXED IND 220NH 1.69A 60 MOHM

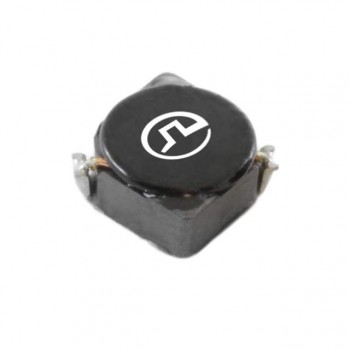

HOT PA4318.473NLT
