NLV32T-180J-PFD

Image is for reference,
please contact us to get the real picture

Part No :: NLV32T-180J-PFD

Manufacturer: TDK Corporation

Description: FIXED IND 18UH 120MA 3.3 OHM SMD

Catalog: Fixed Inductors

Shipped from: HK warehouse

Expected Shipping Date: Jul 02 - Jul 06 2025

DataSheet: NLV32T-180J-PFD PDF

Availability: 0 pieces

Unit Price: ~~$0.12811~~

Current price of NLV32T-180J-PFD is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

NLV32T-180J-PFD Specifications

Type	Description
Series:	NLV-PFD
Package:	Tape & Reel (TR)
Part Status:	Not For New Designs
Type:	Wirewound
Material - Core:	Ferrite
Inductance:	18 µH
Tolerance:	±5%
Current Rating (Amps):	120 mA
Current - Saturation (Isat):	-
Shielding:	Unshielded
DC Resistance (DCR):	3.3Ohm Max
Q @ Freq:	30 @ 2.52MHz
Frequency - Self Resonant:	20MHz
Ratings:	AEC-Q200
Operating Temperature:	-40°C ~ 105°C
Inductance Frequency - Test:	2.52 MHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	1210 (3225 Metric)
Supplier Device Package:	1210 (3225 Metric)
Size / Dimension:	0.126" L x 0.098" W (3.20mm x 2.50mm)
Height - Seated (Max):	0.094" (2.40mm)

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

Hot Products

HOT

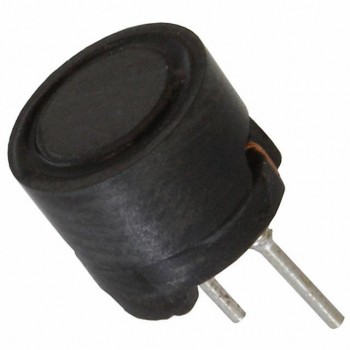

744731680

FIXED IND 68UH 1.5A 200 MOHM TH

HOT

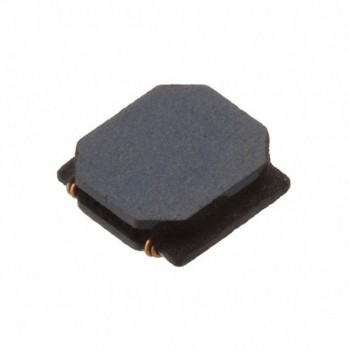

MDWK4040T1R0MMV

FIXED IND 1UH 5.1A 27MOHM SMD

HOT

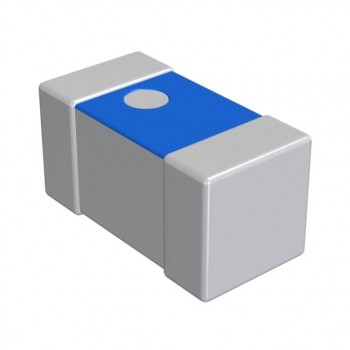

LQP02TN27NH02D
