PQ2614BHA-2R2K

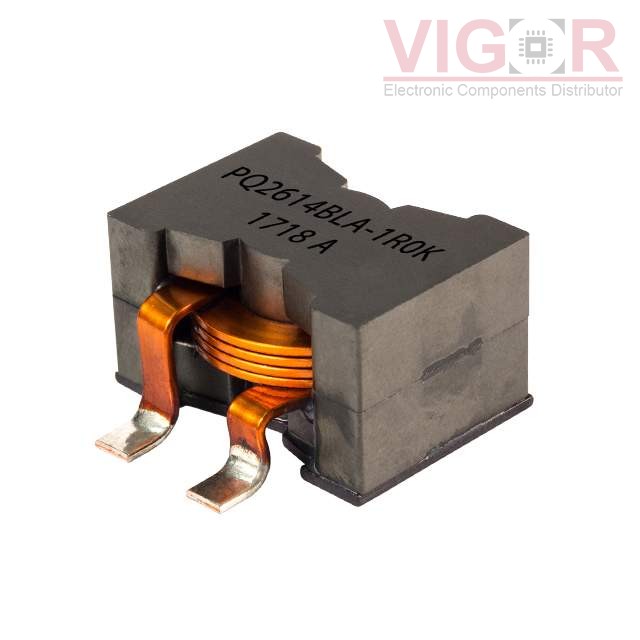

Image is for reference,
please contact us to get the real picture

Part No :: PQ2614BHA-2R2K

Manufacturer: J.W. Miller / Bourns

Description: FIXED IND 2.2UH 30A 1.9 MOHM SMD

Catalog: Fixed Inductors

Shipped from: HK warehouse

Expected Shipping Date: Jul 20 - Jul 24 2025

DataSheet: PQ2614BHA-2R2K PDF

Availability: 30 pieces

Unit Price: ~~$3.69000~~

Current price of PQ2614BHA-2R2K is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

PQ2614BHA-2R2K Specifications

Type	Description
Series:	PQ2614BHA
Package:	Tray
Part Status:	Active
Type:	Wirewound
Material - Core:	Ferrite
Inductance:	2.2 µH
Tolerance:	±10%
Current Rating (Amps):	30 A
Current - Saturation (Isat):	-
Shielding:	Shielded
DC Resistance (DCR):	1.9mOhm Max
Q @ Freq:	-
Frequency - Self Resonant:	40MHz
Ratings:	AEC-Q200
Operating Temperature:	-40°C ~ 155°C
Inductance Frequency - Test:	100 kHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	Nonstandard
Supplier Device Package:	-
Size / Dimension:	1.098" L x 0.780" W (27.90mm x 19.80mm)
Height - Seated (Max):	0.630" (16.00mm)
