EST1060T1R5NDGA

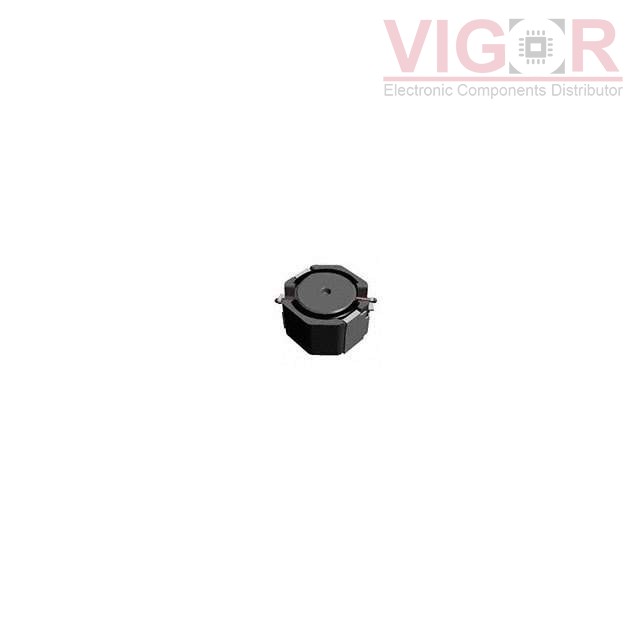

Image is for reference,
please contact us to get the real picture

Part No :: EST1060T1R5NDGA

Manufacturer: TAIYO YUDEN

Description: FIXED IND 1.5UH 8A 7MOHM SMD

Catalog: Fixed Inductors

Shipped from: HK warehouse

Expected Shipping Date: Jul 01 - Jul 05 2025

DataSheet: EST1060T1R5NDGA PDF

Availability: 0 pieces

Unit Price: ~~$1.76000~~

Current price of EST1060T1R5NDGA is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

EST1060T1R5NDGA Specifications

Type	Description
Series:	ES, T Type
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Type:	Wirewound
Material - Core:	Ferrite
Inductance:	1.5 µH
Tolerance:	±30%
Current Rating (Amps):	8 A
Current - Saturation (Isat):	9A
Shielding:	Shielded
DC Resistance (DCR):	7mOhm Max
Q @ Freq:	-
Frequency - Self Resonant:	93MHz
Ratings:	AEC-Q200
Operating Temperature:	-55°C ~ 150°C
Inductance Frequency - Test:	100 kHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	Nonstandard
Supplier Device Package:	-
Size / Dimension:	0.398" L x 0.394" W (10.10mm x 10.00mm)
Height - Seated (Max):	0.248" (6.30mm)

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

Hot Products

HOT

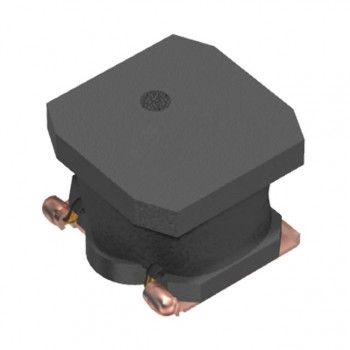

VLS6045EX-6R8N

FIXED IND 6.8UH 3.6A 36 MOHM SMD

HOT

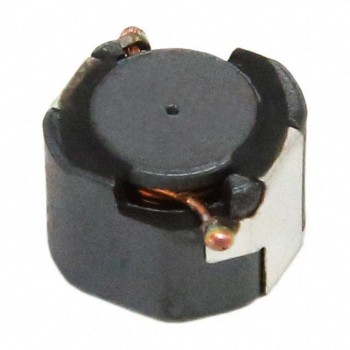

CLF6045T-100M-D

FIXED IND 10UH 2.4A 45.6 MOHM

HOT

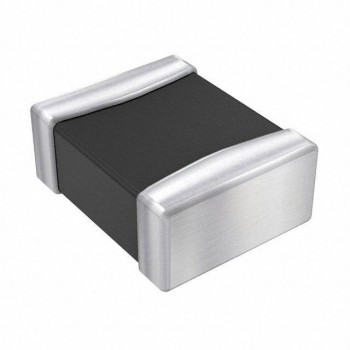

1277AS-H-R68M=P2
