IHLP2525CZER2R2M5A

IHLP2525CZER2R2M5A

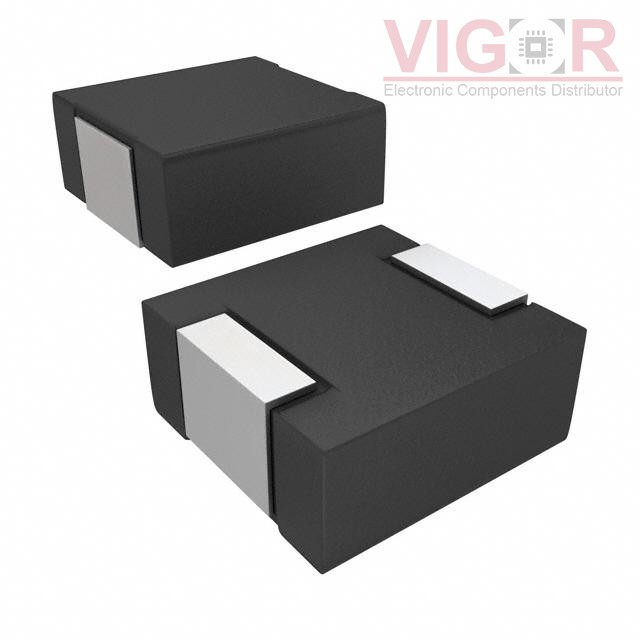

Image is for reference,
please contact us to get the real picture

Part No :

IHLP2525CZER2R2M5A

Manufacturer
Vishay / Dale
Description
FIXED IND 2.2UH 8.1A 18.3 MOHM
Catalog
Fixed Inductors
Shipped from
HK warehouse
Expected Shipping Date
Jul 28 - Aug 01 2025
DataSheet
IHLP2525CZER2R2M5A PDF
Availability
0 pieces
Unit Price
$0.62832

Current price of IHLP2525CZER2R2M5A is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

IHLP2525CZER2R2M5A Specifications
Type Description
Series:IHLP-2525CZ-5A
Package:Tape & Reel (TR)
Part Status:Active
Type:Molded
Material - Core:-
Inductance:2.2 µH
Tolerance:±20%
Current Rating (Amps):8.1 A
Current - Saturation (Isat):10.8A
Shielding:Shielded
DC Resistance (DCR):18.3mOhm Max
Q @ Freq:-
Frequency - Self Resonant:31.2MHz
Ratings:AEC-Q200
Operating Temperature:-55°C ~ 125°C
Inductance Frequency - Test:100 kHz
Features:-
Mounting Type:Surface Mount
Package / Case:Nonstandard
Supplier Device Package:-
Size / Dimension:0.270" L x 0.255" W (6.86mm x 6.47mm)
Height - Seated (Max):0.118" (3.00mm)
