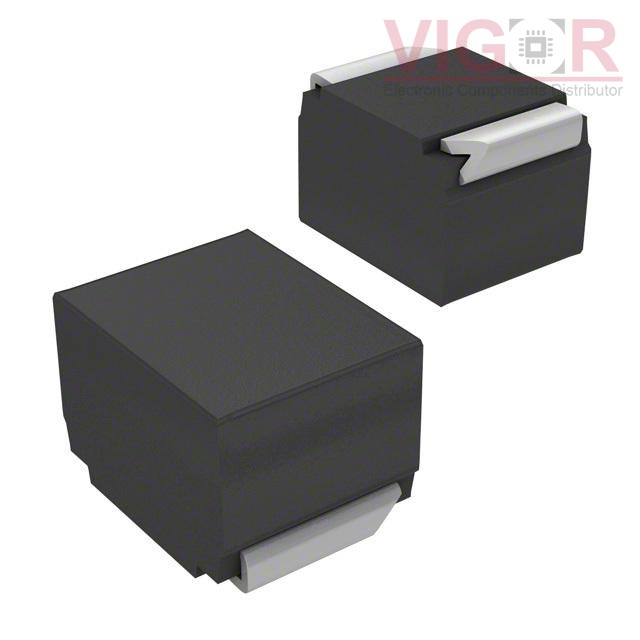

B82422T1561J000

B82422T1561J000

Image is for reference,
please contact us to get the real picture

Part No :

B82422T1561J000

Manufacturer
TDK EPCOS
Description
FIXED IND 560NH 450MA 310 MOHM
Catalog
Fixed Inductors
Shipped from
HK warehouse
Expected Shipping Date
Jul 14 - Jul 18 2025
DataSheet
B82422T1561J000 PDF
Availability
0 pieces
Unit Price
$0.22080

Current price of B82422T1561J000 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

B82422T1561J000 Specifications
Type Description
Series:SIMID
Package:Tape & Reel (TR)
Part Status:Active
Type:Wirewound
Material - Core:Ferrite
Inductance:560 nH
Tolerance:±5%
Current Rating (Amps):450 mA
Current - Saturation (Isat):-
Shielding:Unshielded
DC Resistance (DCR):310mOhm Max
Q @ Freq:30 @ 25.2MHz
Frequency - Self Resonant:300MHz
Ratings:AEC-Q200
Operating Temperature:-55°C ~ 125°C
Inductance Frequency - Test:25.2 MHz
Features:-
Mounting Type:Surface Mount
Package / Case:2-SMD, J-Lead
Supplier Device Package:1210 (3225 Metric)
Size / Dimension:0.126" L x 0.098" W (3.20mm x 2.50mm)
Height - Seated (Max):0.083" (2.10mm)
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products
HOT PG0702.302NLT

PG0702.302NLT

FIXED IND 3UH 12.4A 5.9 MOHM SMD
HOT AMDLA4020S-R22MT

AMDLA4020S-R22MT

IND 0.22UH 14A 7.4MOHM SMD

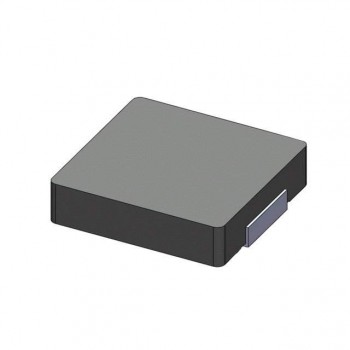

HOT 0512CDMCCDS-R22MC
