NS10145T100MNA

NS10145T100MNA

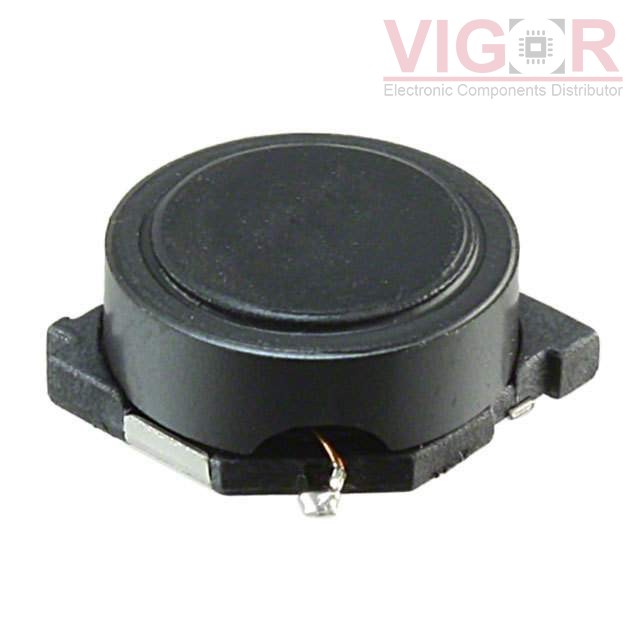

Image is for reference,
please contact us to get the real picture

Part No :

NS10145T100MNA

Manufacturer
TAIYO YUDEN
Description
FIXED IND 10UH 3.77A 30 MOHM SMD
Catalog
Fixed Inductors
Shipped from
HK warehouse
Expected Shipping Date
Jul 26 - Jul 30 2025
DataSheet
NS10145T100MNA PDF
Availability
5 pieces
Unit Price
$0.94000

Current price of NS10145T100MNA is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

NS10145T100MNA Specifications
Type Description
Series:NS
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Type:Wirewound
Material - Core:Ferrite
Inductance:10 µH
Tolerance:±20%
Current Rating (Amps):3.77 A
Current - Saturation (Isat):4.22A
Shielding:Shielded
DC Resistance (DCR):30mOhm Max
Q @ Freq:-
Frequency - Self Resonant:21.6MHz
Ratings:-
Operating Temperature:-40°C ~ 125°C
Inductance Frequency - Test:100 kHz
Features:-
Mounting Type:Surface Mount
Package / Case:Nonstandard
Supplier Device Package:-
Size / Dimension:0.398" L x 0.398" W (10.10mm x 10.10mm)
Height - Seated (Max):0.191" (4.85mm)
