AMPLA5030Q-R56MT

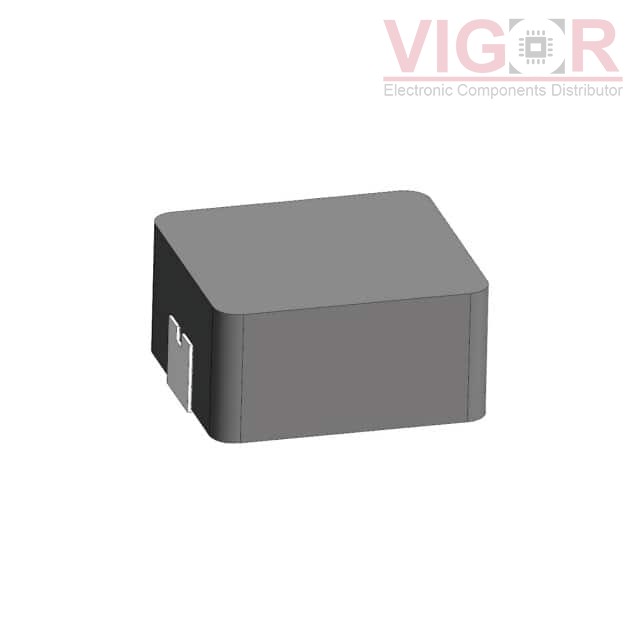

Image is for reference,
please contact us to get the real picture

Part No :: AMPLA5030Q-R56MT

Manufacturer: Abracon

Description: FIXED IND 560NH 10A 10 MOHM SMD

Catalog: Fixed Inductors

Shipped from: HK warehouse

Expected Shipping Date: Jul 19 - Jul 23 2025

DataSheet: AMPLA5030Q-R56MT PDF

Availability: 0 pieces

Unit Price: ~~$0.71731~~

Current price of AMPLA5030Q-R56MT is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

AMPLA5030Q-R56MT Specifications

Type	Description
Series:	AMPLA5030Q
Package:	Tape & Reel (TR)
Part Status:	Active
Type:	Molded
Material - Core:	Carbonyl Powder
Inductance:	560 nH
Tolerance:	±20%
Current Rating (Amps):	10 A
Current - Saturation (Isat):	15A
Shielding:	Shielded
DC Resistance (DCR):	10mOhm Max
Q @ Freq:	-
Frequency - Self Resonant:	-
Ratings:	AEC-Q200
Operating Temperature:	-55°C ~ 125°C
Inductance Frequency - Test:	100 kHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	Nonstandard
Supplier Device Package:	-
Size / Dimension:	0.224" L x 0.205" W (5.70mm x 5.20mm)
Height - Seated (Max):	0.118" (3.00mm)
