RLB0913-223K

RLB0913-223K

Image is for reference,
please contact us to get the real picture

Part No :

RLB0913-223K

Manufacturer
J.W. Miller / Bourns
Description
FIXED IND 22MH 80MA 56 OHM TH
Catalog
Fixed Inductors
Shipped from
HK warehouse
Expected Shipping Date
Aug 19 - Aug 23 2025
DataSheet
RLB0913-223K PDF
Availability
107 pieces
Unit Price
$0.75000

Current price of RLB0913-223K is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

RLB0913-223K Specifications
Type Description
Series:RLB0913
Package:Tray
Part Status:Active
Type:Wirewound
Material - Core:Ferrite
Inductance:22 mH
Tolerance:±10%
Current Rating (Amps):80 mA
Current - Saturation (Isat):30mA
Shielding:Unshielded
DC Resistance (DCR):56Ohm
Q @ Freq:30 @ 79.6kHz
Frequency - Self Resonant:100kHz
Ratings:-
Operating Temperature:-55°C ~ 125°C
Inductance Frequency - Test:1 kHz
Features:-
Mounting Type:Through Hole
Package / Case:Radial, Vertical Cylinder
Supplier Device Package:-
Size / Dimension:0.335" Dia (8.50mm)
Height - Seated (Max):0.492" (12.50mm)
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products
HOT LQG15HNR10H02D

LQG15HNR10H02D

FIXED IND 100NH 200MA 1.6 OHM

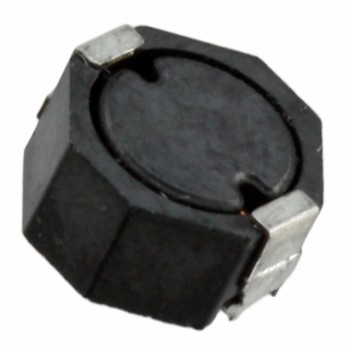

HOT SD53-470-R

SD53-470-R

FIXED IND 47UH 640MA 352 MOHM

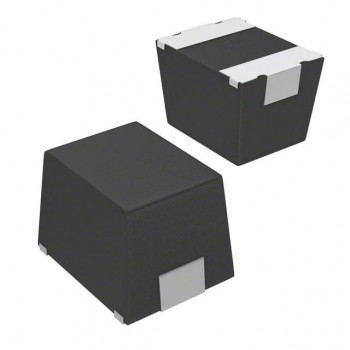

HOT ISC1210SY390K
