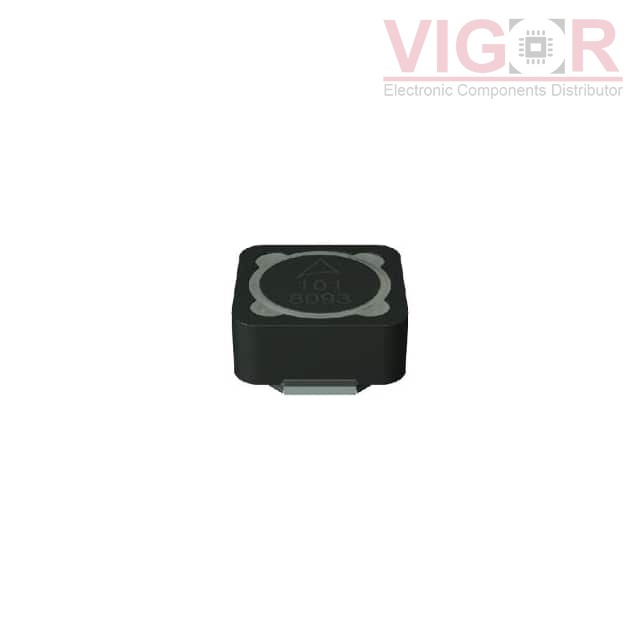

B82477P2223M000

B82477P2223M000

Image is for reference,
please contact us to get the real picture

Part No :

B82477P2223M000

Manufacturer
TDK EPCOS
Description
FIXED IND 22UH 3.4A 36 MOHM SMD
Catalog
Fixed Inductors
Shipped from
HK warehouse
Expected Shipping Date
Jul 27 - Jul 31 2025
DataSheet
B82477P2223M000 PDF
Availability
580 pieces
Unit Price
$2.14000

Current price of B82477P2223M000 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

B82477P2223M000 Specifications
Type Description
Series:B82477P2
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Type:Wirewound
Material - Core:Ferrite
Inductance:22 µH
Tolerance:±20%
Current Rating (Amps):3.4 A
Current - Saturation (Isat):2.8A
Shielding:Shielded
DC Resistance (DCR):36mOhm Max
Q @ Freq:-
Frequency - Self Resonant:-
Ratings:AEC-Q200
Operating Temperature:-55°C ~ 150°C
Inductance Frequency - Test:100 kHz
Features:-
Mounting Type:Surface Mount
Package / Case:Nonstandard
Supplier Device Package:-
Size / Dimension:0.492" L x 0.492" W (12.50mm x 12.50mm)
Height - Seated (Max):0.256" (6.50mm)
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products

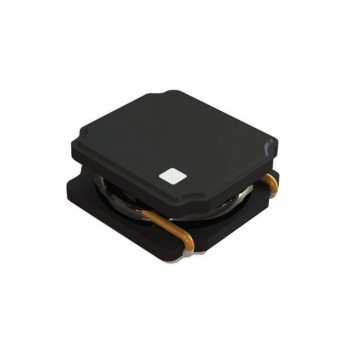

HOT PA4331.681NLT

PA4331.681NLT

FIXED IND 680NH 3.4A 42 MOHM
HOT 5022-361H

5022-361H

FIXED IND 360NH 1.935A 98 MOHM

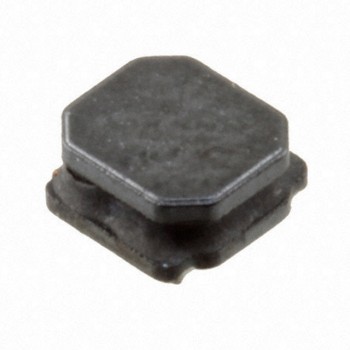

HOT 74404043330A
