SDR1006-561KL

SDR1006-561KL

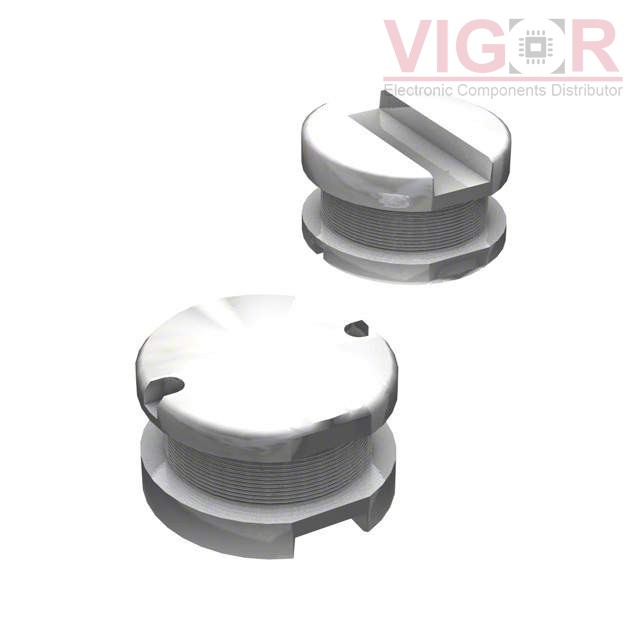

Image is for reference,
please contact us to get the real picture

Part No :

SDR1006-561KL

Manufacturer
J.W. Miller / Bourns
Description
FIXED IND 560UH 330MA 1.9OHM SMD
Catalog
Fixed Inductors
Shipped from
HK warehouse
Expected Shipping Date
Jul 26 - Jul 30 2025
DataSheet
SDR1006-561KL PDF
Availability
0 pieces
Unit Price
$0.88000

Current price of SDR1006-561KL is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

SDR1006-561KL Specifications
Type Description
Series:SDR1006
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Type:Wirewound
Material - Core:Ferrite
Inductance:560 µH
Tolerance:±10%
Current Rating (Amps):330 mA
Current - Saturation (Isat):660mA
Shielding:Unshielded
DC Resistance (DCR):1.9Ohm Max
Q @ Freq:12 @ 796kHz
Frequency - Self Resonant:2.3MHz
Ratings:-
Operating Temperature:-40°C ~ 125°C
Inductance Frequency - Test:1 kHz
Features:-
Mounting Type:Surface Mount
Package / Case:Nonstandard
Supplier Device Package:-
Size / Dimension:0.386" L x 0.386" W (9.80mm x 9.80mm)
Height - Seated (Max):0.228" (5.80mm)
