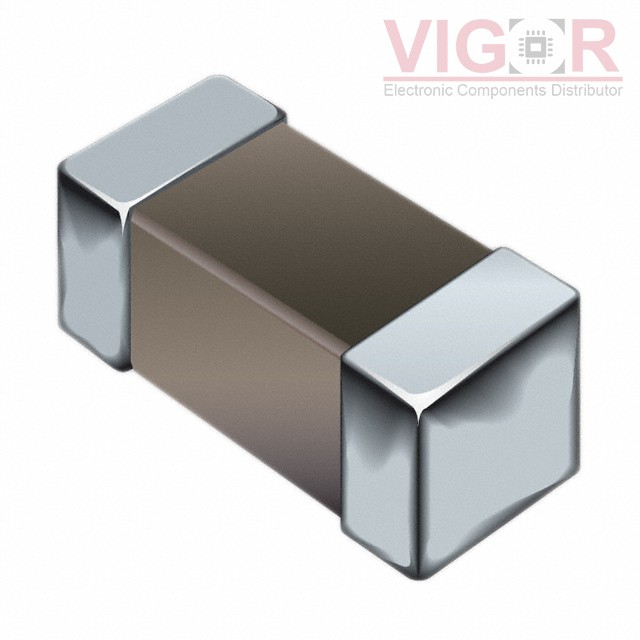

CS160808-R56K

CS160808-R56K

Image is for reference,
please contact us to get the real picture

Part No :

CS160808-R56K

Manufacturer
J.W. Miller / Bourns
Description
FIXED IND 560NH 150MA 900MOHM SM
Catalog
Fixed Inductors
Shipped from
HK warehouse
Expected Shipping Date
Jul 04 - Jul 08 2025
DataSheet
CS160808-R56K PDF
Availability
1744 pieces
Unit Price
$0.13000

Current price of CS160808-R56K is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

CS160808-R56K Specifications
Type Description
Series:CS160808
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Type:Multilayer
Material - Core:Ferrite
Inductance:560 nH
Tolerance:±10%
Current Rating (Amps):150 mA
Current - Saturation (Isat):-
Shielding:Shielded
DC Resistance (DCR):900mOhm Max
Q @ Freq:30 @ 25MHz
Frequency - Self Resonant:95MHz
Ratings:-
Operating Temperature:-55°C ~ 125°C
Inductance Frequency - Test:25 MHz
Features:-
Mounting Type:Surface Mount
Package / Case:0603 (1608 Metric)
Supplier Device Package:0603 (1608 Metric)
Size / Dimension:0.063" L x 0.031" W (1.60mm x 0.80mm)
Height - Seated (Max):0.037" (0.95mm)
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products
HOT 744043470

744043470

FIXED IND 47UH 750MA 280 MOHM
HOT MHQ0402PSA1N7CT000

MHQ0402PSA1N7CT000

FIXED IND 1.7NH 400MA 400 MOHM

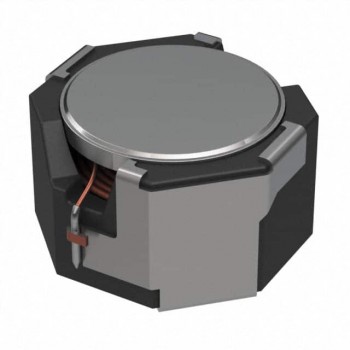

HOT MDH10060C-330MA=P3
