SDE0805A-271K

SDE0805A-271K

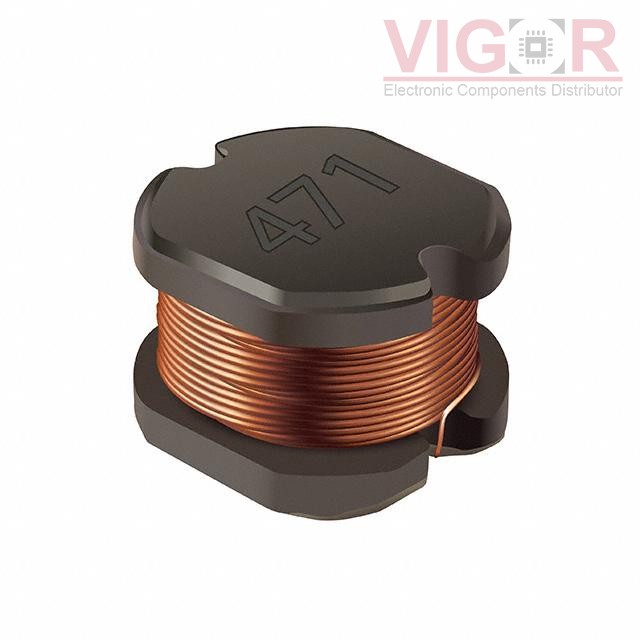

Image is for reference,
please contact us to get the real picture

Part No :

SDE0805A-271K

Manufacturer
J.W. Miller / Bourns
Description
FIXED IND 270UH 700MA 1.11OHM SM
Catalog
Fixed Inductors
Shipped from
HK warehouse
Expected Shipping Date
Jul 19 - Jul 23 2025
DataSheet
SDE0805A-271K PDF
Availability
0 pieces
Unit Price
$0.77000

Current price of SDE0805A-271K is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

SDE0805A-271K Specifications
Type Description
Series:SDE0805A
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Type:Wirewound
Material - Core:Ferrite
Inductance:270 µH
Tolerance:±10%
Current Rating (Amps):700 mA
Current - Saturation (Isat):550mA
Shielding:Unshielded
DC Resistance (DCR):1.11Ohm Max
Q @ Freq:-
Frequency - Self Resonant:5MHz
Ratings:AEC-Q200
Operating Temperature:-40°C ~ 125°C
Inductance Frequency - Test:1 kHz
Features:-
Mounting Type:Surface Mount
Package / Case:Nonstandard
Supplier Device Package:-
Size / Dimension:0.307" L x 0.276" W (7.80mm x 7.00mm)
Height - Seated (Max):0.217" (5.50mm)
