PF0560.334NLT

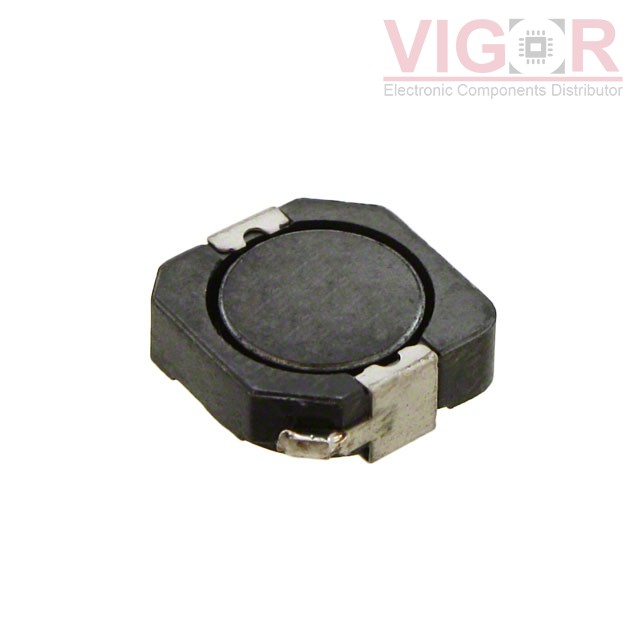

Image is for reference,
please contact us to get the real picture

Part No :: PF0560.334NLT

Manufacturer: PulseLarsen Antenna

Description: FIXED IND 330UH 520MA 1.09 OHM

Catalog: Fixed Inductors

Shipped from: HK warehouse

Expected Shipping Date: Jul 20 - Jul 24 2025

DataSheet: PF0560.334NLT PDF

Availability: 0 pieces

Unit Price: ~~$1.64000~~

Current price of PF0560.334NLT is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

PF0560.334NLT Specifications

Type	Description
Series:	PF0560NL
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Type:	Wirewound
Material - Core:	-
Inductance:	330 µH
Tolerance:	±25%
Current Rating (Amps):	520 mA
Current - Saturation (Isat):	700mA
Shielding:	Shielded
DC Resistance (DCR):	1.09Ohm Max
Q @ Freq:	-
Frequency - Self Resonant:	3.2MHz
Ratings:	-
Operating Temperature:	-40°C ~ 125°C
Inductance Frequency - Test:	100 kHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	Nonstandard
Supplier Device Package:	-
Size / Dimension:	0.409" L x 0.406" W (10.40mm x 10.30mm)
Height - Seated (Max):	0.157" (4.00mm)
