MHQ1005P91NJT000

MHQ1005P91NJT000

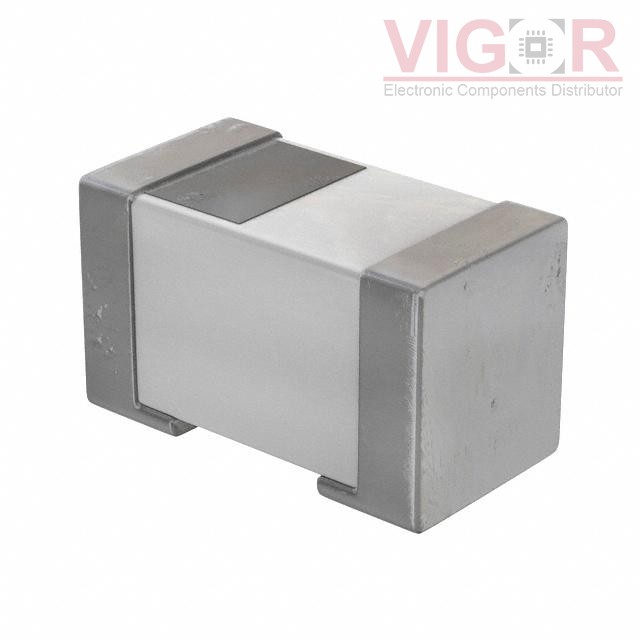

Image is for reference,
please contact us to get the real picture

Part No :

MHQ1005P91NJT000

Manufacturer
TDK Corporation
Description
FIXED IND 91NH 160MA 2.3 OHM SMD
Catalog
Fixed Inductors
Shipped from
HK warehouse
Expected Shipping Date
Aug 01 - Aug 05 2025
DataSheet
MHQ1005P91NJT000 PDF
Availability
0 pieces
Unit Price
$0.06166

Current price of MHQ1005P91NJT000 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

MHQ1005P91NJT000 Specifications
Type Description
Series:MHQ-P
Package:Tape & Reel (TR)
Part Status:Active
Type:Multilayer
Material - Core:Ceramic, Non-Magnetic
Inductance:91 nH
Tolerance:±5%
Current Rating (Amps):160 mA
Current - Saturation (Isat):-
Shielding:Unshielded
DC Resistance (DCR):2.3Ohm Max
Q @ Freq:23 @ 250MHz
Frequency - Self Resonant:900MHz
Ratings:-
Operating Temperature:-55°C ~ 125°C
Inductance Frequency - Test:100 MHz
Features:-
Mounting Type:Surface Mount
Package / Case:0402 (1006 Metric)
Supplier Device Package:1006 (0402)
Size / Dimension:0.039" L x 0.024" W (1.00mm x 0.60mm)
Height - Seated (Max):0.024" (0.60mm)
