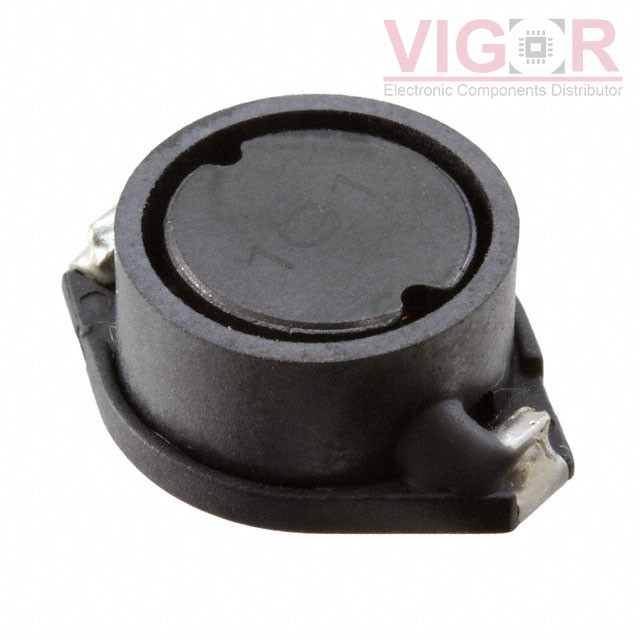

PM5022S-151M-RC

PM5022S-151M-RC

Image is for reference,
please contact us to get the real picture

Part No :

PM5022S-151M-RC

Manufacturer
J.W. Miller / Bourns
Description
FIXED IND 150UH 1.05A 400MOHM SM
Catalog
Fixed Inductors
Shipped from
HK warehouse
Expected Shipping Date
Aug 01 - Aug 05 2025
DataSheet
PM5022S-151M-RC PDF
Availability
0 pieces
Unit Price
$0.46500

Current price of PM5022S-151M-RC is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

PM5022S-151M-RC Specifications
Type Description
Series:PM5022S
Package:Tape & Reel (TR)
Part Status:Active
Type:Wirewound
Material - Core:Ferrite
Inductance:150 µH
Tolerance:±20%
Current Rating (Amps):1.05 A
Current - Saturation (Isat):2.3A
Shielding:Shielded
DC Resistance (DCR):400mOhm
Q @ Freq:39 @ 796kHz
Frequency - Self Resonant:4.3MHz
Ratings:-
Operating Temperature:-40°C ~ 125°C
Inductance Frequency - Test:100 kHz
Features:-
Mounting Type:Surface Mount
Package / Case:Nonstandard
Supplier Device Package:-
Size / Dimension:0.720" L x 0.551" W (18.30mm x 14.00mm)
Height - Seated (Max):0.280" (7.10mm)
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products
HOT CV201210-R33K

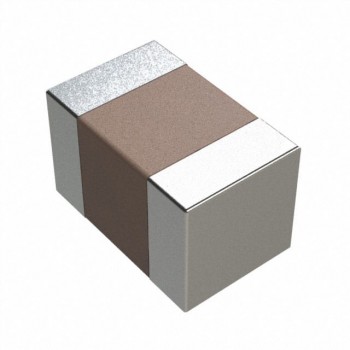

CV201210-R33K

FIXED IND 330NH 250MA 550MOHM SM
HOT SPM4015T-3R3M

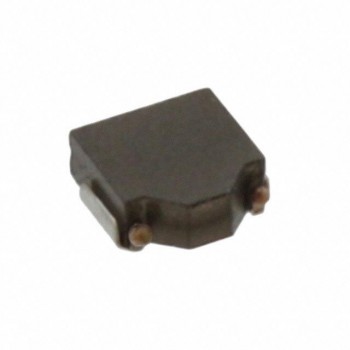

SPM4015T-3R3M

FIXED IND 3.3UH 2.3A 128 MOHM
HOT SRR1260-330M

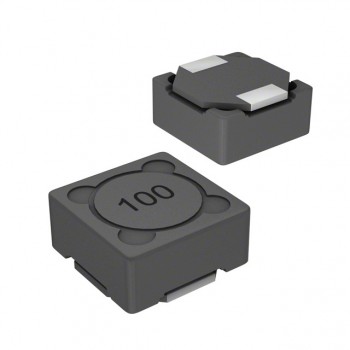

SRR1260-330M
