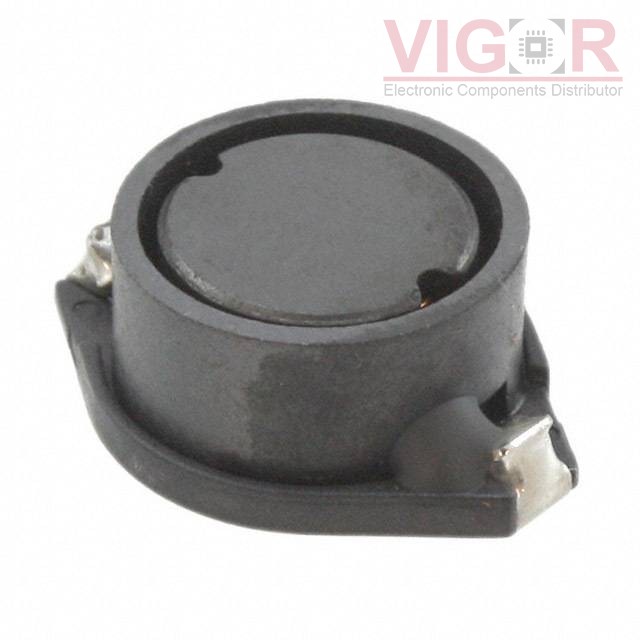

SRR1806-681M

SRR1806-681M

Image is for reference,
please contact us to get the real picture

Part No :

SRR1806-681M

Manufacturer
J.W. Miller / Bourns
Description
FIXED IND 680UH 540MA 1.47OHM SM
Catalog
Fixed Inductors
Shipped from
HK warehouse
Expected Shipping Date
Jul 06 - Jul 10 2025
DataSheet
SRR1806-681M PDF
Availability
750 pieces
Unit Price
$0.71608

Current price of SRR1806-681M is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

SRR1806-681M Specifications
Type Description
Series:SRR1806
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Type:Wirewound
Material - Core:Ferrite
Inductance:680 µH
Tolerance:±20%
Current Rating (Amps):540 mA
Current - Saturation (Isat):1.1A
Shielding:Shielded
DC Resistance (DCR):1.47Ohm
Q @ Freq:19 @ 796kHz
Frequency - Self Resonant:2.1MHz
Ratings:-
Operating Temperature:-40°C ~ 125°C
Inductance Frequency - Test:100 kHz
Features:-
Mounting Type:Surface Mount
Package / Case:Nonstandard
Supplier Device Package:-
Size / Dimension:0.720" L x 0.551" W (18.30mm x 14.00mm)
Height - Seated (Max):0.280" (7.10mm)
