SRN3010-220M

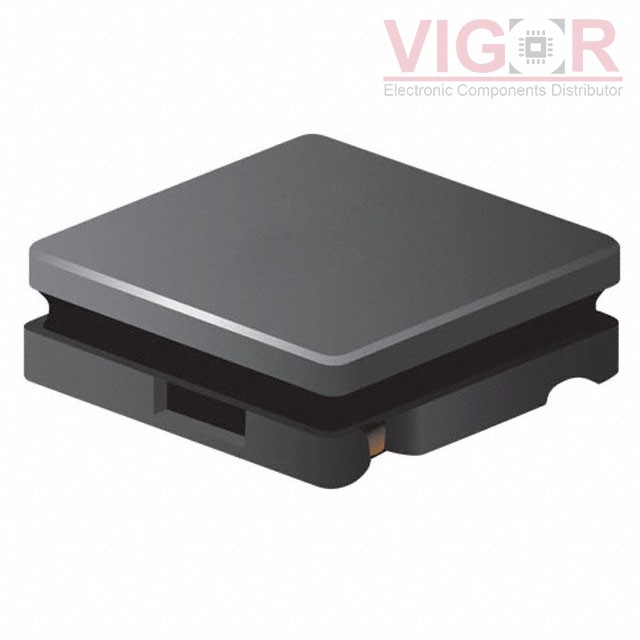

Image is for reference,
please contact us to get the real picture

Part No :: SRN3010-220M

Manufacturer: J.W. Miller / Bourns

Description: FIXED IND 22UH 700MA 936MOHM SMD

Catalog: Fixed Inductors

Shipped from: HK warehouse

Expected Shipping Date: Jul 20 - Jul 24 2025

DataSheet: SRN3010-220M PDF

Availability: 1835 pieces

Unit Price: ~~$0.41000~~

Current price of SRN3010-220M is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

SRN3010-220M Specifications

Type	Description
Series:	SRN3010
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Type:	Wirewound
Material - Core:	Ferrite
Inductance:	22 µH
Tolerance:	±20%
Current Rating (Amps):	700 mA
Current - Saturation (Isat):	400mA
Shielding:	Semi-Shielded
DC Resistance (DCR):	936mOhm Max
Q @ Freq:	14 @ 2.52MHz
Frequency - Self Resonant:	23MHz
Ratings:	-
Operating Temperature:	-40°C ~ 125°C
Inductance Frequency - Test:	100 kHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	Nonstandard
Supplier Device Package:	-
Size / Dimension:	0.118" L x 0.118" W (3.00mm x 3.00mm)
Height - Seated (Max):	0.039" (1.00mm)
