PM105-560K-RC

PM105-560K-RC

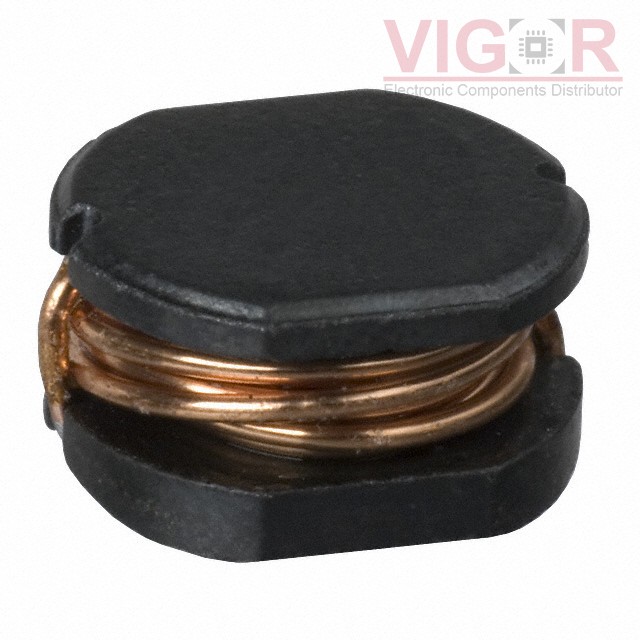

Image is for reference,
please contact us to get the real picture

Part No :

PM105-560K-RC

Manufacturer
J.W. Miller / Bourns
Description
FIXED IND 56UH 1.15A 190MOHM SMD
Catalog
Fixed Inductors
Shipped from
HK warehouse
Expected Shipping Date
Jul 16 - Jul 20 2025
DataSheet
PM105-560K-RC PDF
Availability
0 pieces
Unit Price
$0.60800

Current price of PM105-560K-RC is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

PM105-560K-RC Specifications
Type Description
Series:PM105
Package:Tape & Reel (TR)
Part Status:Active
Type:Wirewound
Material - Core:Ferrite
Inductance:56 µH
Tolerance:±10%
Current Rating (Amps):1.15 A
Current - Saturation (Isat):2.1A
Shielding:Unshielded
DC Resistance (DCR):190mOhm
Q @ Freq:20 @ 2.52MHz
Frequency - Self Resonant:7.5MHz
Ratings:-
Operating Temperature:-40°C ~ 125°C
Inductance Frequency - Test:1 kHz
Features:-
Mounting Type:Surface Mount
Package / Case:Nonstandard
Supplier Device Package:-
Size / Dimension:0.386" L x 0.386" W (9.80mm x 9.80mm)
Height - Seated (Max):0.228" (5.80mm)
