LQP03TNR24J02D

Image is for reference,
please contact us to get the real picture

Part No :: LQP03TNR24J02D

Manufacturer: TOKO / Murata

Description: FIXED IND 240NH 60MA 15 OHM SMD

Catalog: Fixed Inductors

Shipped from: HK warehouse

Expected Shipping Date: Jul 24 - Jul 28 2025

DataSheet: LQP03TNR24J02D PDF

Availability: 0 pieces

Unit Price: ~~$0.01680~~

Current price of LQP03TNR24J02D is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

LQP03TNR24J02D Specifications

Type	Description
Series:	LQP03
Package:	Tape & Reel (TR)
Part Status:	Active
Type:	Thick Film
Material - Core:	Non-Magnetic
Inductance:	240 nH
Tolerance:	±5%
Current Rating (Amps):	60 mA
Current - Saturation (Isat):	-
Shielding:	Unshielded
DC Resistance (DCR):	15Ohm Max
Q @ Freq:	5 @ 100MHz
Frequency - Self Resonant:	450MHz
Ratings:	-
Operating Temperature:	-55°C ~ 125°C
Inductance Frequency - Test:	500 MHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	0201 (0603 Metric)
Supplier Device Package:	0201 (0603 Metric)
Size / Dimension:	0.024" L x 0.012" W (0.60mm x 0.30mm)
Height - Seated (Max):	0.013" (0.33mm)

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

Hot Products

HOT

LQG15HN18NH02D

FIXED IND 18NH 350MA 510 MOHM

HOT

5022R-754F

FIXED IND 750UH 112MA 28.6 OHM

HOT

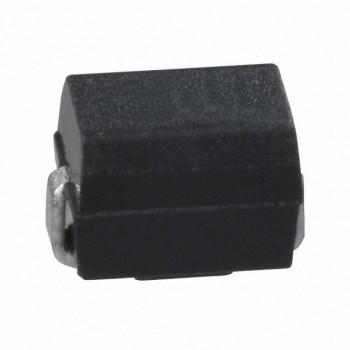

PM1812-R27K-RC
