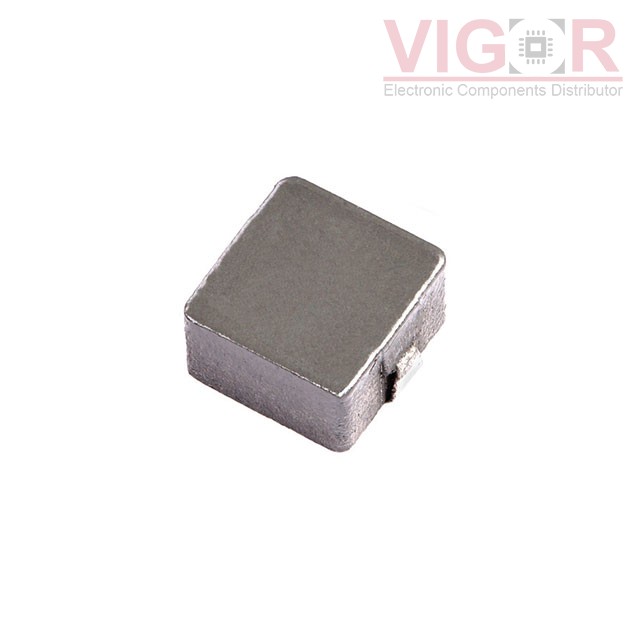

HCMA0503-R20-R

HCMA0503-R20-R

Image is for reference,
please contact us to get the real picture

Part No :

HCMA0503-R20-R

Manufacturer
PowerStor (Eaton)
Description
FIXED IND 200NH 22.2A 2.31 MOHM
Catalog
Fixed Inductors
Shipped from
HK warehouse
Expected Shipping Date
Jul 05 - Jul 09 2025
DataSheet
HCMA0503-R20-R PDF
Availability
2593 pieces
Unit Price
$1.08000

Current price of HCMA0503-R20-R is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

HCMA0503-R20-R Specifications
Type Description
Series:HCMA0503
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Type:Wirewound
Material - Core:Iron Powder
Inductance:200 nH
Tolerance:±20%
Current Rating (Amps):22.2 A
Current - Saturation (Isat):21A
Shielding:Shielded
DC Resistance (DCR):2.31mOhm Max
Q @ Freq:-
Frequency - Self Resonant:-
Ratings:AEC-Q200
Operating Temperature:-55°C ~ 125°C
Inductance Frequency - Test:100 kHz
Features:-
Mounting Type:Surface Mount
Package / Case:Nonstandard
Supplier Device Package:-
Size / Dimension:0.203" L x 0.201" W (5.15mm x 5.10mm)
Height - Seated (Max):0.118" (3.00mm)
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products

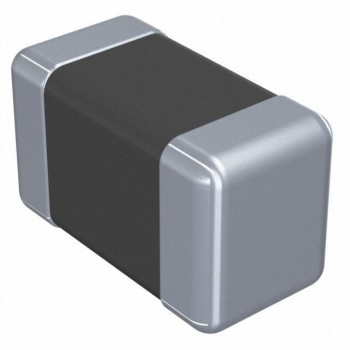

HOT HK160822NJ-T

HK160822NJ-T

FIXED IND 22NH 300MA 400 MOHM

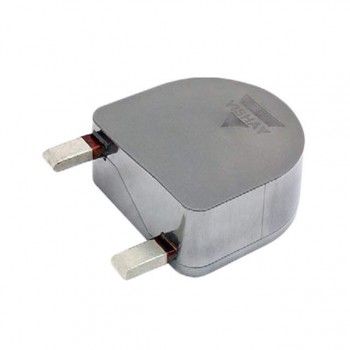

HOT IHXL2000VZEB2R2M5A

IHXL2000VZEB2R2M5A

FIXED IND 2.2UH 187A 0.23 MOHM

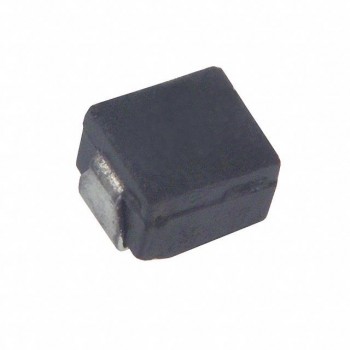

HOT ELJ-FC1R2KF
