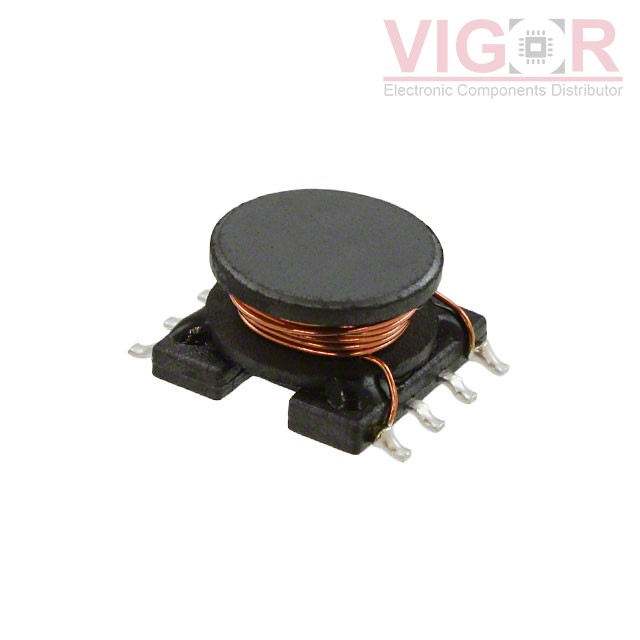

SDR0906-181KL

Image is for reference,
please contact us to get the real picture

Part No :: SDR0906-181KL

Manufacturer: J.W. Miller / Bourns

Description: FIXED IND 180UH 700MA 640MOHM SM

Catalog: Fixed Inductors

Shipped from: HK warehouse

Expected Shipping Date: Aug 05 - Aug 09 2025

DataSheet: SDR0906-181KL PDF

Availability: 0 pieces

Unit Price: ~~$0.40480~~

Current price of SDR0906-181KL is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

SDR0906-181KL Specifications

Type	Description
Series:	SDR0906
Package:	Tape & Reel (TR)
Part Status:	Active
Type:	Wirewound
Material - Core:	Ferrite
Inductance:	180 µH
Tolerance:	±10%
Current Rating (Amps):	700 mA
Current - Saturation (Isat):	820mA
Shielding:	Unshielded
DC Resistance (DCR):	640mOhm Max
Q @ Freq:	15 @ 796kHz
Frequency - Self Resonant:	6MHz
Ratings:	-
Operating Temperature:	-40°C ~ 125°C
Inductance Frequency - Test:	1 kHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	Nonstandard
Supplier Device Package:	-
Size / Dimension:	0.492" L x 0.413" W (12.50mm x 10.50mm)
Height - Seated (Max):	0.248" (6.30mm)

Please confirm the specifications of the products when ordering.
