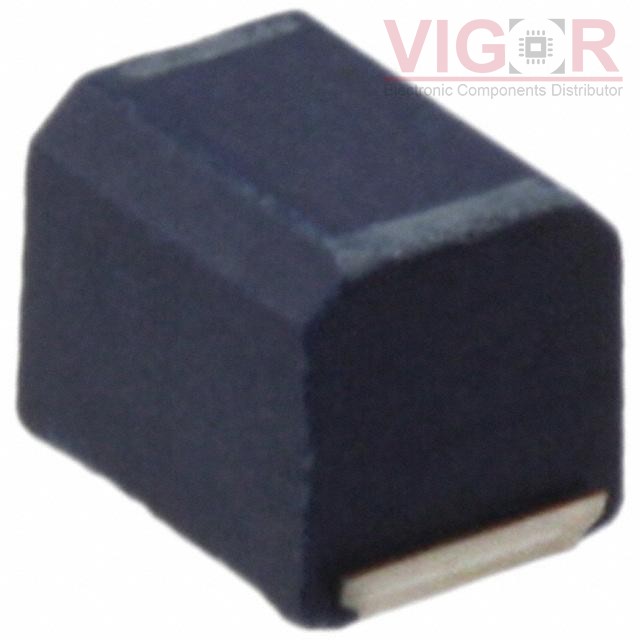

NL453232T-220J-PF

Image is for reference,
please contact us to get the real picture

Part No :

NL453232T-220J-PF

Manufacturer
TDK Corporation
Description
FIXED IND 22UH 180MA 3.2 OHM SMD
Catalog
Fixed Inductors
Shipped from
HK warehouse
Expected Shipping Date
Jul 06 - Jul 10 2025
DataSheet
NL453232T-220J-PF PDF
Availability
936 pieces
Unit Price
$0.43000

Current price of NL453232T-220J-PF is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

Type Description
Series:NL
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Last Time Buy
Type:Wirewound
Material - Core:-
Inductance:22 µH
Tolerance:±5%
Current Rating (Amps):180 mA
Current - Saturation (Isat):-
Shielding:Unshielded
DC Resistance (DCR):3.2Ohm Max
Q @ Freq:50 @ 2.52MHz
Frequency - Self Resonant:13MHz
Ratings:-
Operating Temperature:-40°C ~ 105°C
Inductance Frequency - Test:2.52 MHz
Features:-
Mounting Type:Surface Mount
Package / Case:1812 (4532 Metric)
Supplier Device Package:1812
Size / Dimension:0.177" L x 0.126" W (4.50mm x 3.20mm)
Height - Seated (Max):0.134" (3.40mm)
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
HOT LQG15HH3N6C02D

LQG15HH3N6C02D

FIXED IND 3.6NH 750MA 140 MOHM

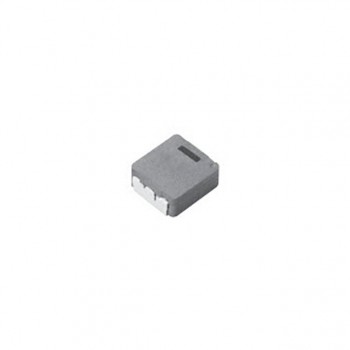

HOT ETQ-P4M3R3YFN
