NS10145T220MNA

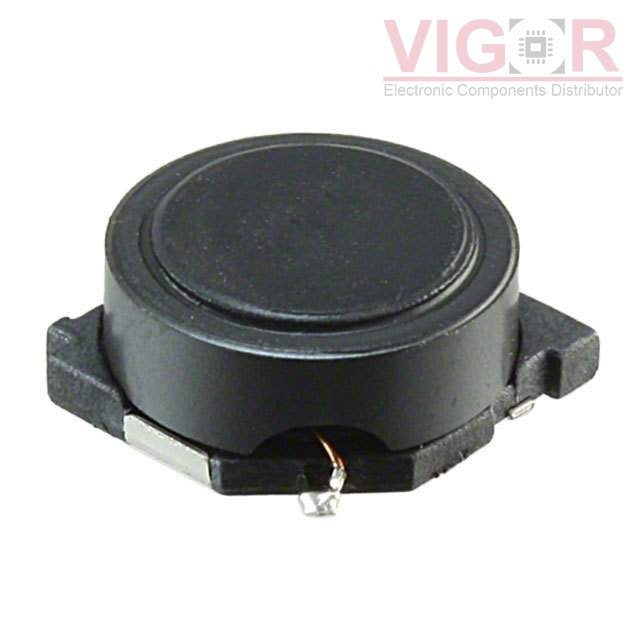

Image is for reference,
please contact us to get the real picture

Part No :: NS10145T220MNA

Manufacturer: TAIYO YUDEN

Description: FIXED IND 22UH 2.55A 62.4 MOHM

Catalog: Fixed Inductors

Shipped from: HK warehouse

Expected Shipping Date: Jul 25 - Jul 29 2025

DataSheet: NS10145T220MNA PDF

Availability: 2463 pieces

Unit Price: ~~$0.94000~~

Current price of NS10145T220MNA is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

NS10145T220MNA Specifications

Type	Description
Series:	NS
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Type:	Wirewound
Material - Core:	Ferrite
Inductance:	22 µH
Tolerance:	±20%
Current Rating (Amps):	2.55 A
Current - Saturation (Isat):	2.87A
Shielding:	Shielded
DC Resistance (DCR):	62.4mOhm Max
Q @ Freq:	-
Frequency - Self Resonant:	13.5MHz
Ratings:	-
Operating Temperature:	-40°C ~ 125°C
Inductance Frequency - Test:	100 kHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	Nonstandard
Supplier Device Package:	-
Size / Dimension:	0.398" L x 0.398" W (10.10mm x 10.10mm)
Height - Seated (Max):	0.191" (4.85mm)
