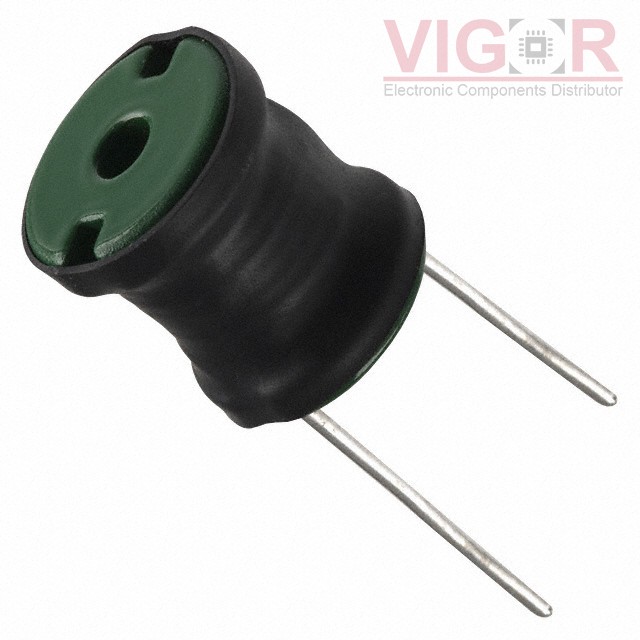

DC780R-224K

Image is for reference,
please contact us to get the real picture

Part No :: DC780R-224K

Manufacturer: API Delevan

Description: FIXED IND 220UH 2.8A 150 MOHM TH

Catalog: Fixed Inductors

Shipped from: HK warehouse

Expected Shipping Date: Jul 17 - Jul 21 2025

DataSheet: DC780R-224K PDF

Availability: 244 pieces

Unit Price: ~~$6.82000~~

Current price of DC780R-224K is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

DC780R-224K Specifications

Type	Description
Series:	DC780R
Package:	Bulk
Part Status:	Active
Type:	Wirewound
Material - Core:	Ferrite
Inductance:	220 µH
Tolerance:	±10%
Current Rating (Amps):	2.8 A
Current - Saturation (Isat):	7.4A
Shielding:	Unshielded
DC Resistance (DCR):	150mOhm Max
Q @ Freq:	-
Frequency - Self Resonant:	-
Ratings:	-
Operating Temperature:	-55°C ~ 125°C
Inductance Frequency - Test:	1 kHz
Features:	-
Mounting Type:	Through Hole
Package / Case:	Radial, Vertical Cylinder
Supplier Device Package:	-
Size / Dimension:	0.772" Dia (19.60mm)
Height - Seated (Max):	0.831" (21.10mm)
