2727-05J

2727-05J

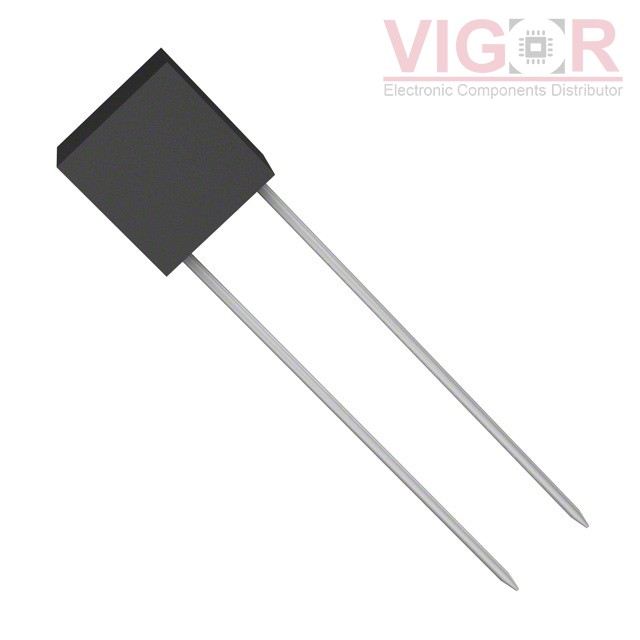

Image is for reference,
please contact us to get the real picture

Part No :

2727-05J

Manufacturer
API Delevan
Description
FIXED IND 22UH 290MA 2.3 OHM TH
Catalog
Fixed Inductors
Shipped from
HK warehouse
Expected Shipping Date
Jul 17 - Jul 21 2025
DataSheet
2727-05J PDF
Availability
0 pieces
Unit Price
$17.46290

Current price of 2727-05J is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

2727-05J Specifications
Type Description
Series:2727
Package:Bulk
Part Status:Active
Type:Toroidal
Material - Core:Iron
Inductance:22 µH
Tolerance:±5%
Current Rating (Amps):290 mA
Current - Saturation (Isat):-
Shielding:Unshielded
DC Resistance (DCR):2.3Ohm Max
Q @ Freq:80 @ 2.5MHz
Frequency - Self Resonant:22MHz
Ratings:-
Operating Temperature:-55°C ~ 125°C
Inductance Frequency - Test:2.5 MHz
Features:-
Mounting Type:Through Hole
Package / Case:Radial, Vertical
Supplier Device Package:-
Size / Dimension:0.280" L x 0.160" W (7.11mm x 4.06mm)
Height - Seated (Max):0.300" (7.62mm)
