CKP2520M2R2M-T

CKP2520M2R2M-T

Image is for reference,
please contact us to get the real picture

Part No :

CKP2520M2R2M-T

Manufacturer
TAIYO YUDEN
Description
FIXED IND 2.2UH 1.2A 100 MOHM
Catalog
Fixed Inductors
Shipped from
HK warehouse
Expected Shipping Date
Jul 29 - Aug 02 2025
DataSheet
CKP2520M2R2M-T PDF
Availability
39 pieces
Unit Price
$0.33000

Current price of CKP2520M2R2M-T is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

CKP2520M2R2M-T Specifications
Type Description
Series:CK, P Type
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Type:Multilayer
Material - Core:Ferrite
Inductance:2.2 µH
Tolerance:±20%
Current Rating (Amps):1.2 A
Current - Saturation (Isat):-
Shielding:Unshielded
DC Resistance (DCR):100mOhm Max
Q @ Freq:-
Frequency - Self Resonant:-
Ratings:-
Operating Temperature:-40°C ~ 85°C
Inductance Frequency - Test:1 MHz
Features:-
Mounting Type:Surface Mount
Package / Case:1008 (2520 Metric)
Supplier Device Package:1008 (2520 Metric)
Size / Dimension:0.098" L x 0.079" W (2.50mm x 2.00mm)
Height - Seated (Max):0.031" (0.80mm)
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products

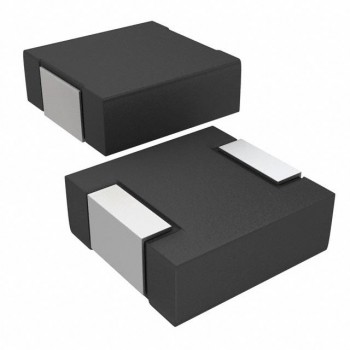

HOT IHLP2020CZER220M11

IHLP2020CZER220M11

FIXED IND 22UH 1.9A 270 MOHM SMD
HOT 74404054015

74404054015

FIXED IND 1.5UH 4.3A 15 MOHM SMD

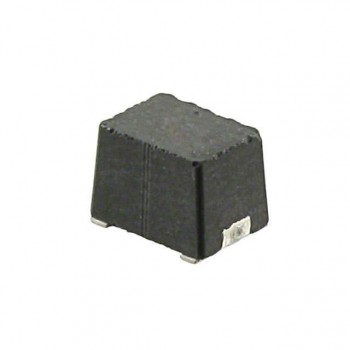

HOT ISC1812BN4R7K
