S1812-223K

S1812-223K

Image is for reference,
please contact us to get the real picture

Part No :

S1812-223K

Manufacturer
API Delevan
Description
FIXED IND 22UH 277MA 2.6 OHM SMD
Catalog
Fixed Inductors
Shipped from
HK warehouse
Expected Shipping Date
Jul 25 - Jul 29 2025
DataSheet
S1812-223K PDF
Availability
0 pieces
Unit Price
$1.65920

Current price of S1812-223K is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

S1812-223K Specifications
Type Description
Series:S1812
Package:Tape & Reel (TR)
Part Status:Active
Type:-
Material - Core:Ferrite
Inductance:22 µH
Tolerance:±10%
Current Rating (Amps):277 mA
Current - Saturation (Isat):-
Shielding:Shielded
DC Resistance (DCR):2.6Ohm Max
Q @ Freq:50 @ 2.5MHz
Frequency - Self Resonant:14MHz
Ratings:-
Operating Temperature:-55°C ~ 125°C
Inductance Frequency - Test:2.5 MHz
Features:-
Mounting Type:Surface Mount
Package / Case:1812 (4532 Metric)
Supplier Device Package:1812
Size / Dimension:0.177" L x 0.126" W (4.50mm x 3.20mm)
Height - Seated (Max):0.134" (3.40mm)
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products
HOT LQP03TQ7N5H02D

LQP03TQ7N5H02D

FIXED IND 7.5NH 300MA 550 MOHM
HOT HLC023R3BTTR

HLC023R3BTTR

FIXED IND 3.3NH 476MA 340 MOHM

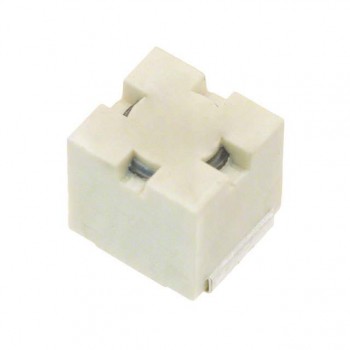

HOT B82442A1685J000
