LQW15AN1N3C1ZD

LQW15AN1N3C1ZD

Image is for reference,
please contact us to get the real picture

Part No :

LQW15AN1N3C1ZD

Manufacturer
TOKO / Murata
Description
FIXED IND 1.3NH 1.2A 17MOHM SMD
Catalog
Fixed Inductors
Shipped from
HK warehouse
Expected Shipping Date
Jul 29 - Aug 02 2025
DataSheet
LQW15AN1N3C1ZD PDF
Availability
0 pieces
Unit Price
$0.07520

Current price of LQW15AN1N3C1ZD is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

LQW15AN1N3C1ZD Specifications
Type Description
Series:LQW15
Package:Tape & Reel (TR)
Part Status:Active
Type:Wirewound
Material - Core:Non-Magnetic
Inductance:1.3 nH
Tolerance:±0.2nH
Current Rating (Amps):1.2 A
Current - Saturation (Isat):-
Shielding:Unshielded
DC Resistance (DCR):17mOhm Max
Q @ Freq:20 @ 250MHz
Frequency - Self Resonant:16GHz
Ratings:AEC-Q200
Operating Temperature:-55°C ~ 125°C
Inductance Frequency - Test:100 MHz
Features:-
Mounting Type:Surface Mount
Package / Case:0402 (1005 Metric)
Supplier Device Package:0402
Size / Dimension:0.039" L x 0.024" W (1.00mm x 0.60mm)
Height - Seated (Max):0.024" (0.60mm)
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products
HOT IMC1210SYR56J

IMC1210SYR56J

FIXED IND 560NH 450MA 550 MOHM

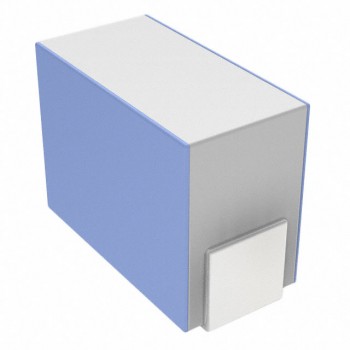

HOT LQP02HQ3N2B02E

LQP02HQ3N2B02E

FIXED IND 3.2NH 400MA 250 MOHM

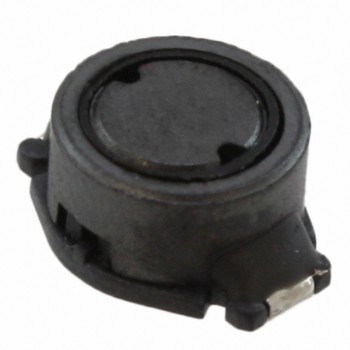

HOT SRR0805-470Y
