MLZ2012P220WTD25

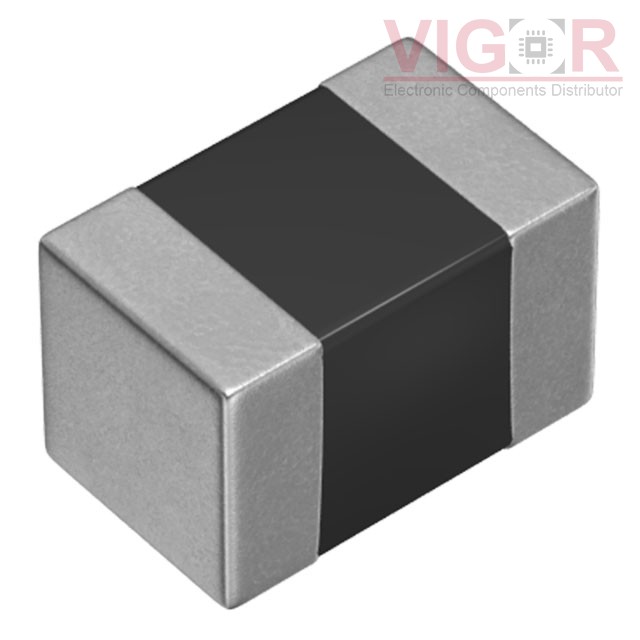

Image is for reference,
please contact us to get the real picture

Part No :: MLZ2012P220WTD25

Manufacturer: TDK Corporation

Description: FIXED IND 22UH 220MA 1.25 OHM

Catalog: Fixed Inductors

Shipped from: HK warehouse

Expected Shipping Date: Jul 27 - Jul 31 2025

DataSheet: MLZ2012P220WTD25 PDF

Availability: 1389 pieces

Unit Price: ~~$0.18000~~

Current price of MLZ2012P220WTD25 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

MLZ2012P220WTD25 Specifications

Type	Description
Series:	MLZ
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Type:	Multilayer
Material - Core:	Ferrite
Inductance:	22 µH
Tolerance:	±20%
Current Rating (Amps):	220 mA
Current - Saturation (Isat):	100mA
Shielding:	Shielded
DC Resistance (DCR):	1.25Ohm
Q @ Freq:	-
Frequency - Self Resonant:	-
Ratings:	AEC-Q200
Operating Temperature:	-55°C ~ 125°C
Inductance Frequency - Test:	2 MHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	0805 (2012 Metric)
Supplier Device Package:	0805 (2012 Metric)
Size / Dimension:	0.079" L x 0.049" W (2.00mm x 1.25mm)
Height - Seated (Max):	0.057" (1.45mm)

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
