IMC0603ER10NG01

IMC0603ER10NG01

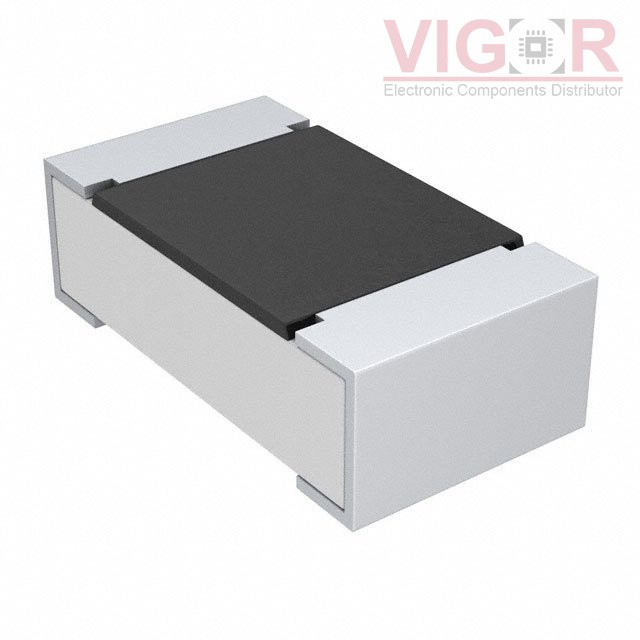

Image is for reference,
please contact us to get the real picture

Part No :

IMC0603ER10NG01

Manufacturer
Vishay / Dale
Description
FIXED IND 10NH 700MA 130 MOHM
Catalog
Fixed Inductors
Shipped from
HK warehouse
Expected Shipping Date
Jul 30 - Aug 03 2025
DataSheet
IMC0603ER10NG01 PDF
Availability
0 pieces
Unit Price
$0.13770

Current price of IMC0603ER10NG01 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

IMC0603ER10NG01 Specifications
Type Description
Series:IMC-0603-01
Package:Tape & Reel (TR)
Part Status:Active
Type:Wirewound
Material - Core:-
Inductance:10 nH
Tolerance:±2%
Current Rating (Amps):700 mA
Current - Saturation (Isat):-
Shielding:Unshielded
DC Resistance (DCR):130mOhm Max
Q @ Freq:30 @ 250MHz
Frequency - Self Resonant:4.8GHz
Ratings:-
Operating Temperature:-40°C ~ 125°C
Inductance Frequency - Test:250 MHz
Features:-
Mounting Type:Surface Mount
Package / Case:0603 (1608 Metric)
Supplier Device Package:0603 (1608 Metric)
Size / Dimension:0.063" L x 0.041" W (1.60mm x 1.05mm)
Height - Seated (Max):0.049" (1.25mm)
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products
HOT 7447785001

7447785001

FIXED IND 1UH 3.5A 39 MOHM SMD
HOT 1422311C

1422311C

FIXED IND 22UH 11A 14 MOHM TH

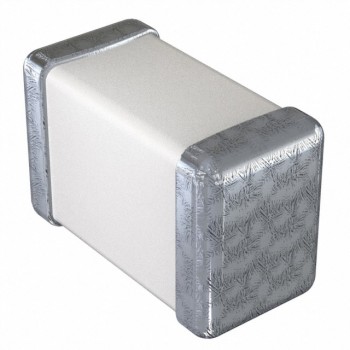

HOT MCL1005-1R1-R
