PM1812-R56K-RC

PM1812-R56K-RC

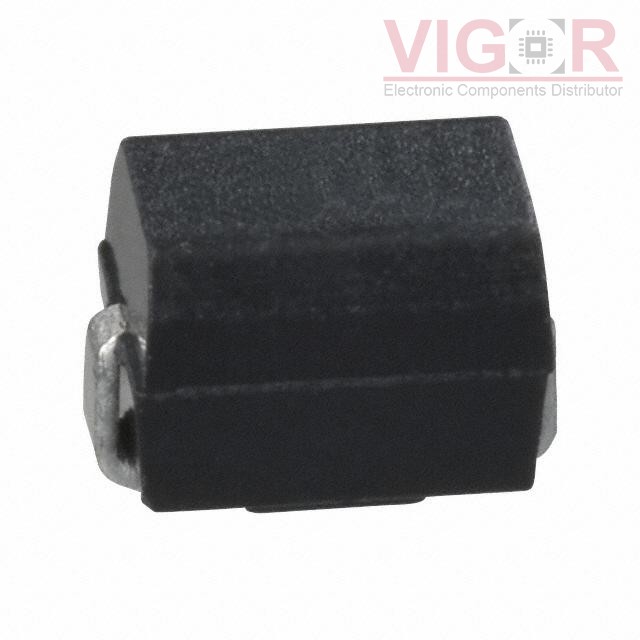

Image is for reference,
please contact us to get the real picture

Part No :

PM1812-R56K-RC

Manufacturer
J.W. Miller / Bourns
Description
FIXED IND 560NH 520MA 360MOHM SM
Catalog
Fixed Inductors
Shipped from
HK warehouse
Expected Shipping Date
Jun 30 - Jul 04 2025
DataSheet
PM1812-R56K-RC PDF
Availability
0 pieces
Unit Price
$0.16020

Current price of PM1812-R56K-RC is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

PM1812-R56K-RC Specifications
Type Description
Series:PM1812
Package:Tape & Reel (TR)
Part Status:Active
Type:-
Material - Core:Ferrite
Inductance:560 nH
Tolerance:±10%
Current Rating (Amps):520 mA
Current - Saturation (Isat):-
Shielding:Unshielded
DC Resistance (DCR):360mOhm Max
Q @ Freq:40 @ 25.2MHz
Frequency - Self Resonant:140MHz
Ratings:-
Operating Temperature:-40°C ~ 100°C
Inductance Frequency - Test:25.2 MHz
Features:-
Mounting Type:Surface Mount
Package / Case:1812 (4532 Metric)
Supplier Device Package:1812
Size / Dimension:0.177" L x 0.126" W (4.50mm x 3.20mm)
Height - Seated (Max):0.134" (3.40mm)
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products
HOT MLP2520V1R0MT0S1

MLP2520V1R0MT0S1

FIXED IND 1UH 1.3A 130 MOHM SMD
HOT SLF12555T-101M1R1-PF

SLF12555T-101M1R1-PF

FIXED IND 100UH 1.8A 140.4 MOHM

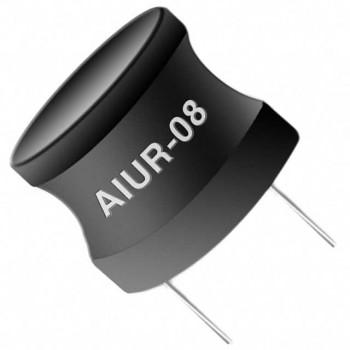

HOT AIUR-08-221K
