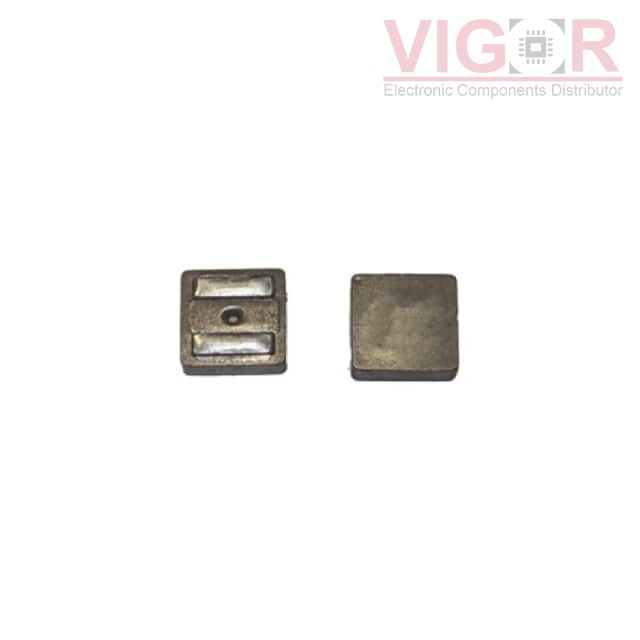

EXL1V0505-8R2-R

Image is for reference,
please contact us to get the real picture

Part No :: EXL1V0505-8R2-R

Manufacturer: PowerStor (Eaton)

Description: IND POWDER 8.20UH 6.1A

Catalog: Fixed Inductors

Shipped from: HK warehouse

Expected Shipping Date: Jul 29 - Aug 02 2025

DataSheet: EXL1V0505-8R2-R PDF

Availability: 0 pieces

Unit Price: ~~$0.34680~~

Current price of EXL1V0505-8R2-R is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

EXL1V0505-8R2-R Specifications

Type	Description
Series:	EXL1V0505
Package:	Tape & Reel (TR)
Part Status:	Active
Type:	Molded
Material - Core:	Iron Powder
Inductance:	8.2 µH
Tolerance:	±20%
Current Rating (Amps):	6.1 A
Current - Saturation (Isat):	6.1A
Shielding:	Shielded
DC Resistance (DCR):	32.5mOhm Max
Q @ Freq:	-
Frequency - Self Resonant:	15MHz
Ratings:	-
Operating Temperature:	-40°C ~ 125°C
Inductance Frequency - Test:	100 kHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	Nonstandard
Supplier Device Package:	-
Size / Dimension:	0.236" L x 0.224" W (6.00mm x 5.70mm)
Height - Seated (Max):	0.197" (5.00mm)
