B82141A1564J000

B82141A1564J000

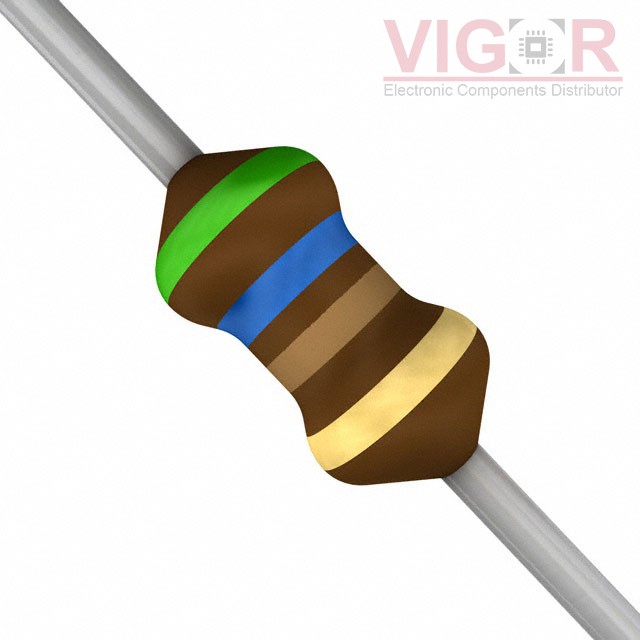

Image is for reference,
please contact us to get the real picture

Part No :

B82141A1564J000

Manufacturer
TDK EPCOS
Description
FIXED IND 560UH 75MA 16.5 OHM TH
Catalog
Fixed Inductors
Shipped from
HK warehouse
Expected Shipping Date
Jul 20 - Jul 24 2025
DataSheet
B82141A1564J000 PDF
Availability
0 pieces
Unit Price
$0.14960

Current price of B82141A1564J000 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

B82141A1564J000 Specifications
Type Description
Series:SBC
Package:Tape & Reel (TR)
Part Status:Active
Type:Wirewound
Material - Core:Ferrite
Inductance:560 µH
Tolerance:±5%
Current Rating (Amps):75 mA
Current - Saturation (Isat):-
Shielding:Unshielded
DC Resistance (DCR):16.5Ohm Max
Q @ Freq:60 @ 796kHz
Frequency - Self Resonant:2.2MHz
Ratings:-
Operating Temperature:-55°C ~ 125°C
Inductance Frequency - Test:796 kHz
Features:-
Mounting Type:Through Hole
Package / Case:Axial
Supplier Device Package:-
Size / Dimension:0.118" Dia x 0.268" L (3.00mm x 6.80mm)
Height - Seated (Max):-
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products
HOT SBCP-14HY682B

SBCP-14HY682B

FIXED IND 6.8MH 220MA 7.17 OHM
HOT S1210-101K

S1210-101K

FIXED IND 100NH 1.131A 150 MOHM

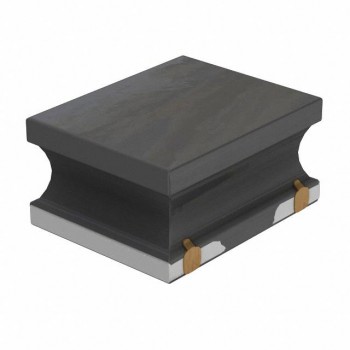

HOT VLS201610CX-1R5M-1
