PA4309.684NLT

PA4309.684NLT

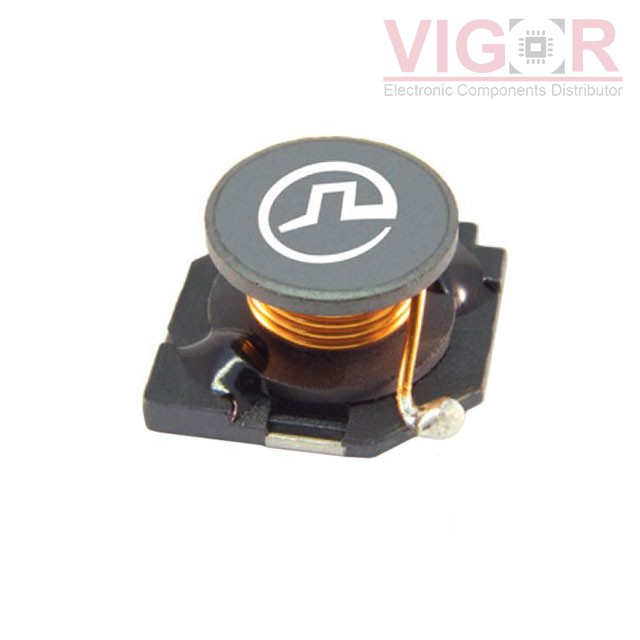

Image is for reference,
please contact us to get the real picture

Part No :

PA4309.684NLT

Manufacturer
PulseLarsen Antenna
Description
FIXED IND 680UH 1.32A 2.565 OHM
Catalog
Fixed Inductors
Shipped from
HK warehouse
Expected Shipping Date
Jul 20 - Jul 24 2025
DataSheet
PA4309.684NLT PDF
Availability
0 pieces
Unit Price
$0.51150

Current price of PA4309.684NLT is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

PA4309.684NLT Specifications
Type Description
Series:PA4309.XXXNL
Package:Tape & Reel (TR)
Part Status:Active
Type:Wirewound
Material - Core:-
Inductance:680 µH
Tolerance:±20%
Current Rating (Amps):1.32 A
Current - Saturation (Isat):-
Shielding:Unshielded
DC Resistance (DCR):2.565Ohm Max
Q @ Freq:-
Frequency - Self Resonant:-
Ratings:-
Operating Temperature:-40°C ~ 125°C
Inductance Frequency - Test:100 kHz
Features:-
Mounting Type:Surface Mount
Package / Case:Nonstandard
Supplier Device Package:-
Size / Dimension:0.504" L x 0.504" W (12.80mm x 12.80mm)
Height - Seated (Max):0.276" (7.00mm)
