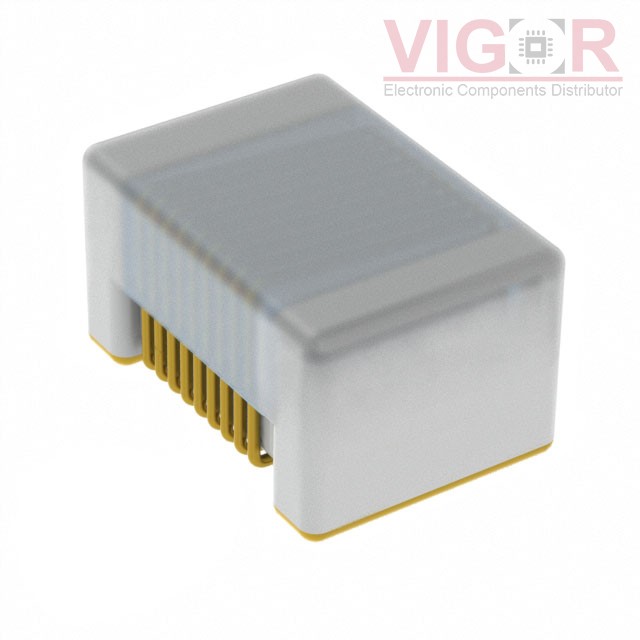

CW161009A-12NJ

Image is for reference,
please contact us to get the real picture

Part No :: CW161009A-12NJ

Manufacturer: J.W. Miller / Bourns

Description: FIXED IND 12NH 700MA 100MOHM SMD

Catalog: Fixed Inductors

Shipped from: HK warehouse

Expected Shipping Date: Jul 01 - Jul 05 2025

DataSheet: CW161009A-12NJ PDF

Availability: 638 pieces

Unit Price: ~~$0.25000~~

Current price of CW161009A-12NJ is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

CW161009A-12NJ Specifications

Type	Description
Series:	CW161009A
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Type:	-
Material - Core:	Ceramic
Inductance:	12 nH
Tolerance:	±5%
Current Rating (Amps):	700 mA
Current - Saturation (Isat):	-
Shielding:	Unshielded
DC Resistance (DCR):	100mOhm Max
Q @ Freq:	32 @ 250MHz
Frequency - Self Resonant:	4GHz
Ratings:	AEC-Q200
Operating Temperature:	-40°C ~ 125°C
Inductance Frequency - Test:	250 MHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	0603 (1608 Metric)
Supplier Device Package:	0603
Size / Dimension:	0.065" L x 0.045" W (1.65mm x 1.15mm)
Height - Seated (Max):	0.043" (1.10mm)

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

Hot Products

HOT

HL02150GTTR

FIXED IND 15NH 200MA 904 MOHM

HOT

CDR7D28MNNP-8R0NC

FIXED IND 8UH 2.6A 50 MOHM SMD

HOT

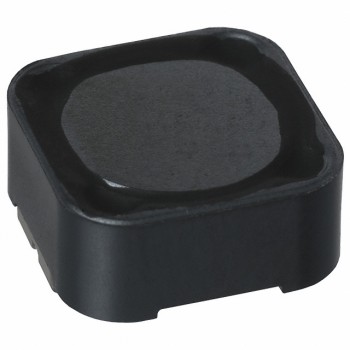

CDRH125NP-681MC
