784777220

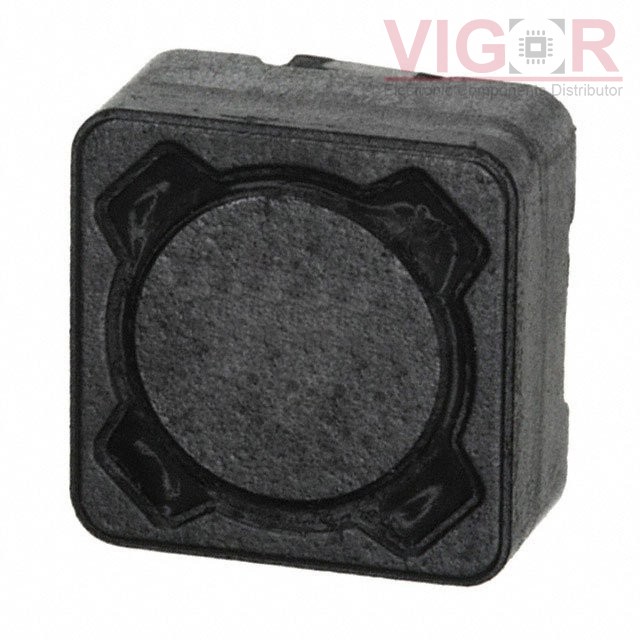

Image is for reference,
please contact us to get the real picture

Part No :: 784777220

Manufacturer: Würth Elektronik Midcom

Description: FIXED IND 22UH 1.4A 215 MOHM SMD

Catalog: Fixed Inductors

Shipped from: HK warehouse

Expected Shipping Date: Aug 02 - Aug 06 2025

DataSheet: 784777220 PDF

Availability: 0 pieces

Unit Price: ~~$1.55200~~

Current price of 784777220 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

784777220 Specifications

Type	Description
Series:	WE-PDA
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Type:	Wirewound
Material - Core:	Nickel Zinc Ferrite (NiZn)
Inductance:	22 µH
Tolerance:	±20%
Current Rating (Amps):	1.4 A
Current - Saturation (Isat):	1.8A
Shielding:	Shielded
DC Resistance (DCR):	215mOhm Max
Q @ Freq:	-
Frequency - Self Resonant:	18.5MHz
Ratings:	AEC-Q200
Operating Temperature:	-40°C ~ 125°C
Inductance Frequency - Test:	100 kHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	Nonstandard, 4 Lead
Supplier Device Package:	7345
Size / Dimension:	0.287" L x 0.287" W (7.30mm x 7.30mm)
Height - Seated (Max):	0.169" (4.30mm)
