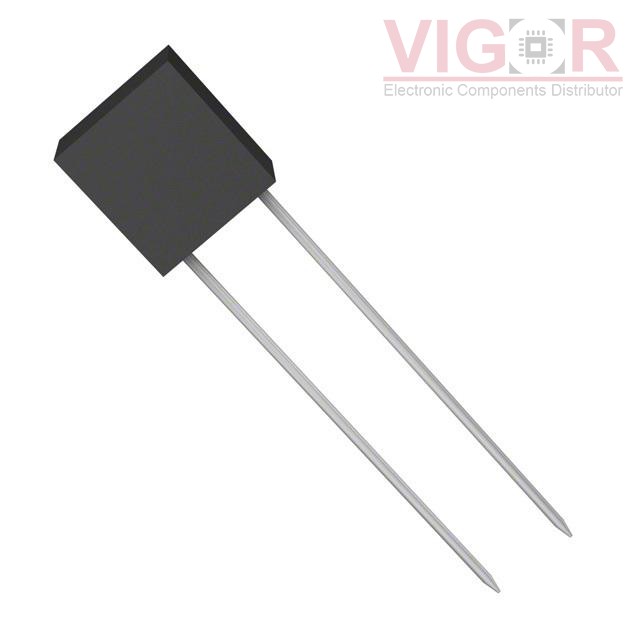

2727-22G

Image is for reference,
please contact us to get the real picture

Part No :: 2727-22G

Manufacturer: API Delevan

Description: FIXED IND 560UH 77MA 32 OHM TH

Catalog: Fixed Inductors

Shipped from: HK warehouse

Expected Shipping Date: Jul 20 - Jul 24 2025

DataSheet: 2727-22G PDF

Availability: 0 pieces

Unit Price: ~~$52.01760~~

Current price of 2727-22G is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

2727-22G Specifications

Type	Description
Series:	2727
Package:	Bulk
Part Status:	Active
Type:	Toroidal
Material - Core:	Iron
Inductance:	560 µH
Tolerance:	±2%
Current Rating (Amps):	77 mA
Current - Saturation (Isat):	-
Shielding:	Unshielded
DC Resistance (DCR):	32Ohm Max
Q @ Freq:	55 @ 790kHz
Frequency - Self Resonant:	3.1MHz
Ratings:	-
Operating Temperature:	-55°C ~ 125°C
Inductance Frequency - Test:	790 kHz
Features:	-
Mounting Type:	Through Hole
Package / Case:	Radial, Vertical
Supplier Device Package:	-
Size / Dimension:	0.280" L x 0.160" W (7.11mm x 4.06mm)
Height - Seated (Max):	0.300" (7.62mm)

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

Hot Products

HOT

MLG0603S9N1HTD25

FIXED IND 9.1NH 200MA 800 MOHM

HOT

LQW15AN3N6D10D

FIXED IND 3.6NH 900MA 40 MOHM

HOT

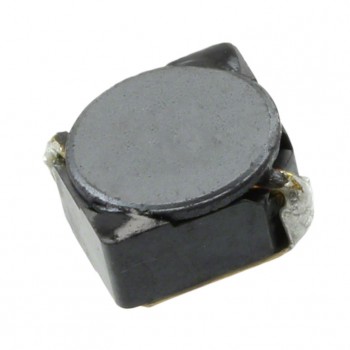

PA4300.334NLT
