7443642200

7443642200

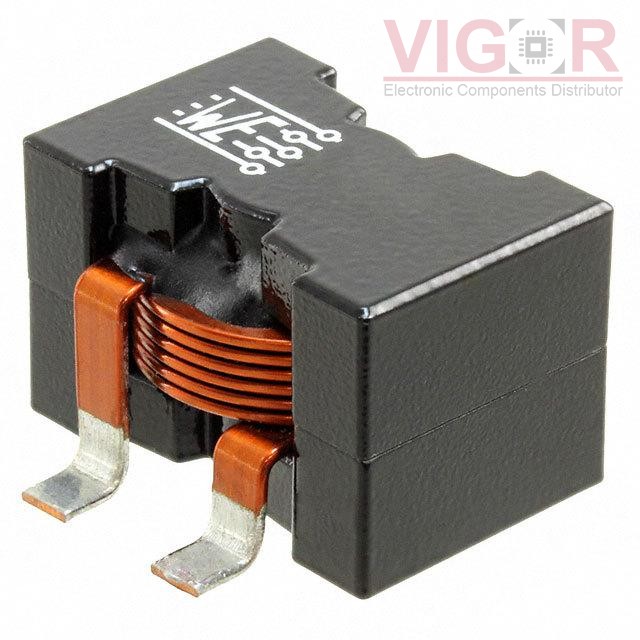

Image is for reference,
please contact us to get the real picture

Part No :

7443642200

Manufacturer
Würth Elektronik Midcom
Description
FIXED IND 22UH 30A 2.4 MOHM SMD
Catalog
Fixed Inductors
Shipped from
HK warehouse
Expected Shipping Date
Jul 25 - Jul 29 2025
DataSheet
7443642200 PDF
Availability
6029 pieces
Unit Price
$9.35000

Current price of 7443642200 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

7443642200 Specifications
Type Description
Series:WE-HCF
Package:Tray
Part Status:Active
Type:Wirewound
Material - Core:Manganese Zinc Ferrite (MnZn)
Inductance:22 µH
Tolerance:±15%
Current Rating (Amps):30 A
Current - Saturation (Isat):18A
Shielding:Shielded
DC Resistance (DCR):2.4mOhm
Q @ Freq:-
Frequency - Self Resonant:9MHz
Ratings:-
Operating Temperature:-40°C ~ 125°C
Inductance Frequency - Test:100 kHz
Features:-
Mounting Type:Surface Mount
Package / Case:Nonstandard
Supplier Device Package:2818
Size / Dimension:1.122" L x 0.768" W (28.50mm x 19.50mm)
Height - Seated (Max):0.728" (18.50mm)
