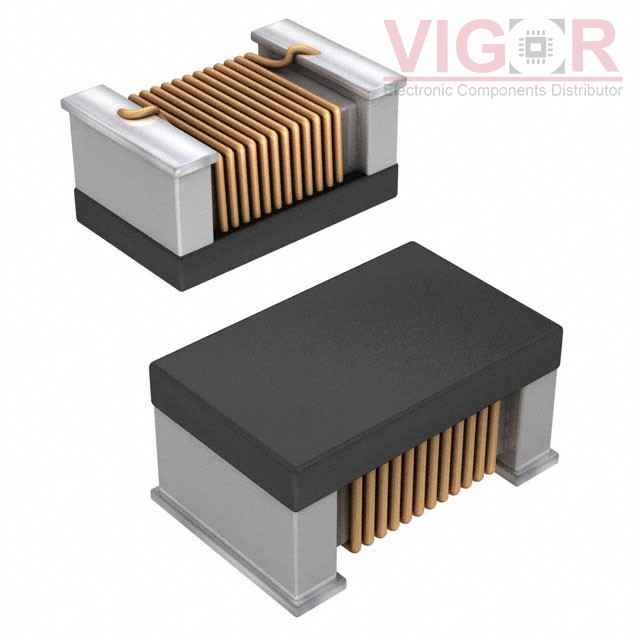

IMC0805ER100J01

IMC0805ER100J01

Image is for reference,
please contact us to get the real picture

Part No :

IMC0805ER100J01

Manufacturer
Vishay / Dale
Description
FIXED IND 10UH 80MA 5 OHM SMD
Catalog
Fixed Inductors
Shipped from
HK warehouse
Expected Shipping Date
Jul 24 - Jul 28 2025
DataSheet
IMC0805ER100J01 PDF
Availability
14945 pieces
Unit Price
$0.32000

Current price of IMC0805ER100J01 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

IMC0805ER100J01 Specifications
Type Description
Series:IMC-0805-01
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Type:Wirewound
Material - Core:Ferrite
Inductance:10 µH
Tolerance:±5%
Current Rating (Amps):80 mA
Current - Saturation (Isat):-
Shielding:Unshielded
DC Resistance (DCR):5Ohm Max
Q @ Freq:10 @ 2.52MHz
Frequency - Self Resonant:40MHz
Ratings:-
Operating Temperature:-40°C ~ 125°C
Inductance Frequency - Test:2.52 MHz
Features:-
Mounting Type:Surface Mount
Package / Case:0805 (2012 Metric)
Supplier Device Package:0805 (2012 Metric)
Size / Dimension:0.079" L x 0.049" W (2.00mm x 1.25mm)
Height - Seated (Max):0.055" (1.40mm)
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products
HOT MLK0603L3N0ST000

MLK0603L3N0ST000

FIXED IND 3NH 200MA 400 MOHM SMD
HOT SBCP-80HY6R8H

SBCP-80HY6R8H

FIXED IND 6.8UH 3.3A 50 MOHM TH

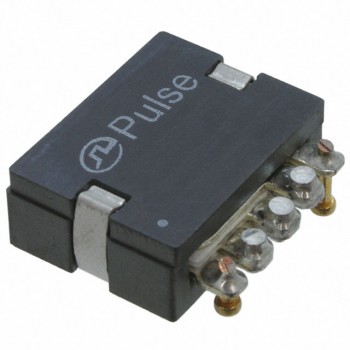

HOT PA1393.202NL
