Due to the large price fluctuation in 2021-2022, please send an inquiry to get the latest quotation, The current price of SH50F-1.4-220 is for reference only, if you want to get the best price, please submit an inquiry or email directly to our sales team [email protected]
Type | Description |
---|---|
Series: | SH50 |
Package: | Tray |
Part Status: | Active |
Type: | Toroidal |
Material - Core: | Iron Powder |
Inductance: | 220 µH |
Tolerance: | ±20% |
Current Rating (Amps): | 1.4 A |
Current - Saturation (Isat): | - |
Shielding: | Unshielded |
DC Resistance (DCR): | 380mOhm Max |
Q @ Freq: | - |
Frequency - Self Resonant: | - |
Ratings: | - |
Operating Temperature: | -40°C ~ 125°C |
Inductance Frequency - Test: | 10 kHz |
Features: | - |
Mounting Type: | Through Hole |
Package / Case: | Radial, Vertical Cylinder, 4 Leads |
Supplier Device Package: | - |
Size / Dimension: | 0.669" Dia (17.00mm) |
Height - Seated (Max): | 0.492" (12.50mm) |

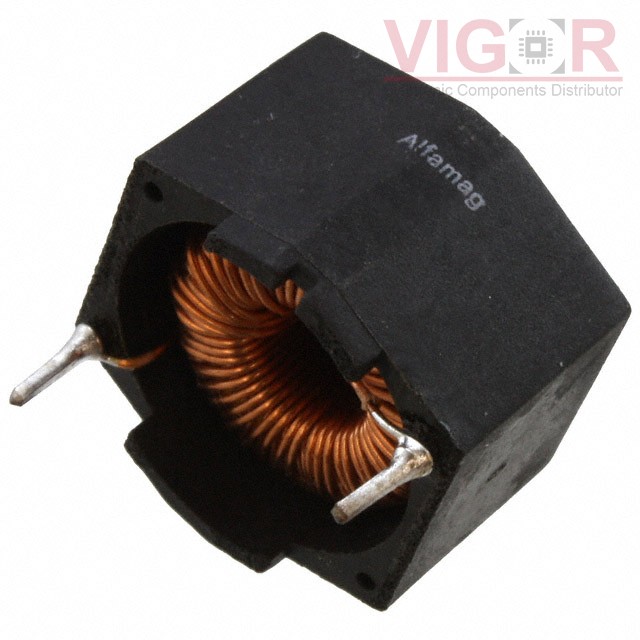

FIXED IND 220UH 1.4A 380 MOHM TH
