RLB0712-220KL

RLB0712-220KL

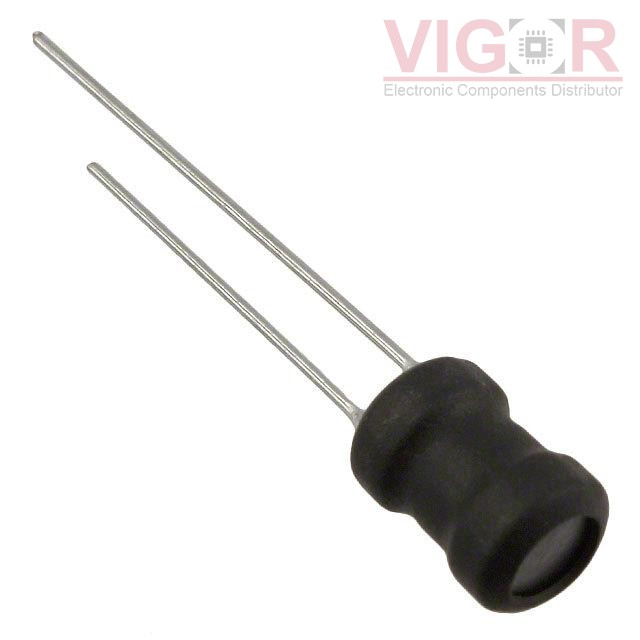

Image is for reference,
please contact us to get the real picture

Part No :

RLB0712-220KL

Manufacturer
J.W. Miller / Bourns
Description
FIXED IND 22UH 700MA 120 MOHM TH
Catalog
Fixed Inductors
Shipped from
HK warehouse
Expected Shipping Date
Jul 04 - Jul 08 2025
DataSheet
RLB0712-220KL PDF
Availability
1163 pieces
Unit Price
$0.40000

Current price of RLB0712-220KL is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

RLB0712-220KL Specifications
Type Description
Series:RLB
Package:Bulk
Part Status:Active
Type:Wirewound
Material - Core:Ferrite
Inductance:22 µH
Tolerance:±10%
Current Rating (Amps):700 mA
Current - Saturation (Isat):-
Shielding:Unshielded
DC Resistance (DCR):120mOhm Max
Q @ Freq:20 @ 2.52MHz
Frequency - Self Resonant:9MHz
Ratings:-
Operating Temperature:-40°C ~ 105°C
Inductance Frequency - Test:1 kHz
Features:-
Mounting Type:Through Hole
Package / Case:Radial, Vertical Cylinder
Supplier Device Package:-
Size / Dimension:0.264" Dia (6.70mm)
Height - Seated (Max):0.433" (11.00mm)
