NLV25T-8R2J-EFD

NLV25T-8R2J-EFD

Image is for reference,
please contact us to get the real picture

Part No :

NLV25T-8R2J-EFD

Manufacturer
TDK Corporation
Description
FIXED IND 8.2UH 160MA 3.05 OHM
Catalog
Fixed Inductors
Shipped from
HK warehouse
Expected Shipping Date
Jul 05 - Jul 09 2025
DataSheet
NLV25T-8R2J-EFD PDF
Availability
16274 pieces
Unit Price
$0.32000

Current price of NLV25T-8R2J-EFD is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

NLV25T-8R2J-EFD Specifications
Type Description
Series:NLV-EFD
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Type:Wirewound
Material - Core:Ferrite
Inductance:8.2 µH
Tolerance:±5%
Current Rating (Amps):160 mA
Current - Saturation (Isat):-
Shielding:Unshielded
DC Resistance (DCR):3.05Ohm Max
Q @ Freq:25 @ 7.96MHz
Frequency - Self Resonant:36MHz
Ratings:AEC-Q200
Operating Temperature:-40°C ~ 105°C
Inductance Frequency - Test:7.96 MHz
Features:-
Mounting Type:Surface Mount
Package / Case:1008 (2520 Metric)
Supplier Device Package:1008 (2520 Metric)
Size / Dimension:0.098" L x 0.079" W (2.50mm x 2.00mm)
Height - Seated (Max):0.075" (1.90mm)
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products

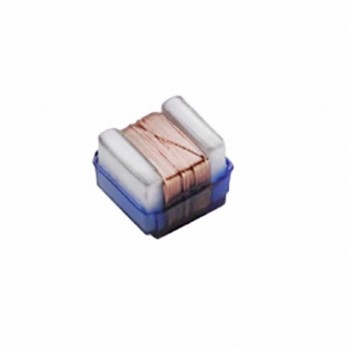

HOT AISC-0603-R22G-T

AISC-0603-R22G-T

FIXED IND 220NH 140MA 2.1 OHM

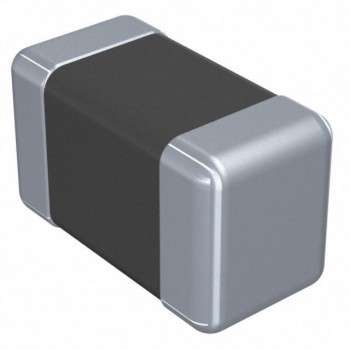

HOT LK21251R8K-T

LK21251R8K-T

FIXED IND 1.8UH 80MA 450 MOHM

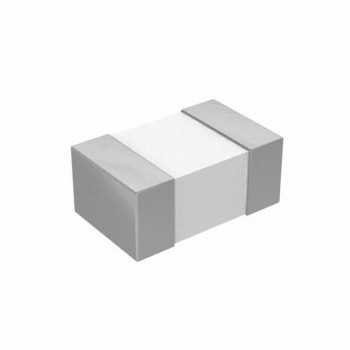

HOT AIMC-0805-15NJ-T
